Removal and Installation

All seats

1. Position the LH seat to the load floor position.
   Fig 1: Identifying Seats Load Floor Position

   Courtesy of FORD MOTOR CO.

   Seat with inoperable seat latch

2. NOTE: RH seat shown in illustration, LH similar.

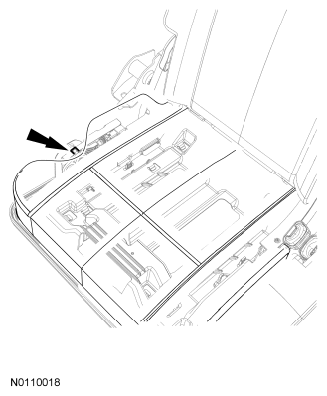

   Push the cushion cover and foam pad back and locate the power seat latch by-pass cut-out in the bracket.

   Fig 2: Locating Power Seat Latch By-Pass Cut-Out In Bracket

   Courtesy of FORD MOTOR CO.

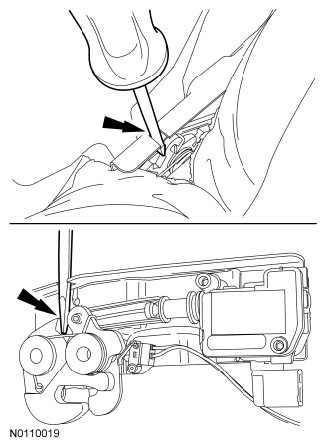

3. Slide a screwdriver through the latch bracket opening and down until it bottoms out on the latch mechanism.
   • The screwdriver must be straight up and down and not on an angle or the screwdriver will not come in contact with the latch release lever.
     Fig 3: Sliding Screwdriver Through Latch Bracket Until It Bottoms Out On Latch Mechanism

     Courtesy of FORD MOTOR CO.

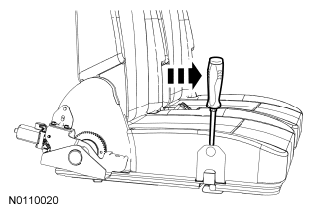

4. Pivot the screwdriver handle toward the front of the seat, releasing the latch.
   Fig 4: Pivoting Screwdriver Handle Toward Front Of Seat

   Courtesy of FORD MOTOR CO.

   Seat with inoperable stow motor

5. NOTE: LH shown in illustration, RH similar.

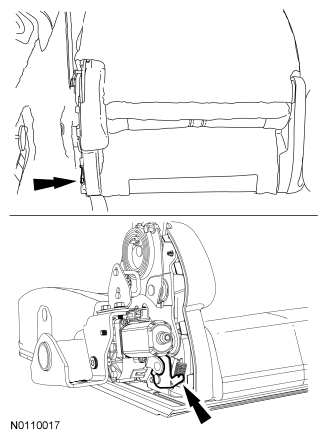

   Pry to release the clips and remove the backrest latch outer cover.

   Fig 5: Locating Backrest Latch Outer Cover

   Courtesy of FORD MOTOR CO.
6. NOTE: Make sure the wire harness is not damaged while positioning the release lever or the power-fold seat will not operate correctly.
   NOTE: LH shown in illustration, RH similar.

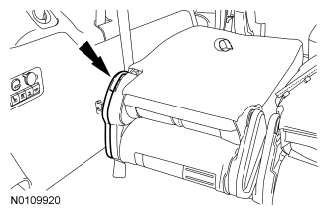

   Position the pivot release lever down and pivot the seat away from the floor striker.

   • When installing, make sure the pivot lever is engaged.
     Fig 6: Locating Pivot Release Lever

     Courtesy of FORD MOTOR CO.

   All seats

7. NOTE: Do not lift the load floor flapper panel too far or damage to the wire harness retainers will occur.

   Separate the LH load floor support from the load floor panel.

   • Push the load floor support rearward and slightly lift the load floor to disengage.
     Fig 7: Locating Load Floor Support

     Courtesy of FORD MOTOR CO.
8. Slightly raise the LH load floor flapper panel, pull up and detach the wire harness retainer attached to the load floor support studs.
   Fig 8: Locating Wire Harness Retainer Attached To Load Floor Support Studs

   Courtesy of FORD MOTOR CO.
9. Carefully lift the LH load floor flapper panel, disconnect the electrical connectors, detach the retainers and remove the Power-Fold Seat Module (PFSM).
   Fig 9: Locating Power-Fold Seat Module

   Courtesy of FORD MOTOR CO.
10. To install, reverse the removal procedure.
