Removal and Installation

NOTE: For parts identification and location, refer to SEAT - EXPLODED VIEW, SECOND ROW .

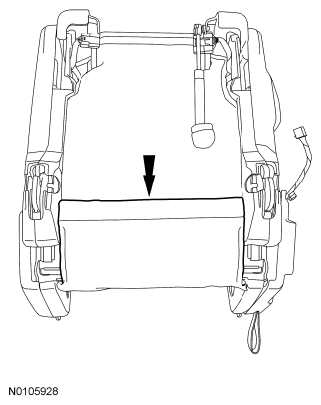

Separate the J-clips and open the cushion cover.

Fig 1: Locating Cushion Cover
Courtesy of FORD MOTOR CO.

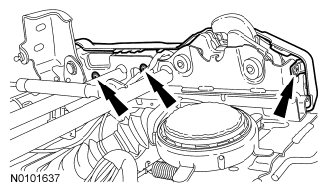

Separate the electrical connector from the front outboard seat track foot (if equipped), remove the 2 outboard inner cover screws and position the cover out of the way.

Fig 2: Locating Outboard Cover And Screws
Courtesy of FORD MOTOR CO.

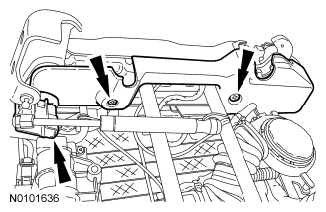

Remove the 3 screws and separate the outboard outer cover.

Fig 3: Locating Outboard Outer Cover Screws
Courtesy of FORD MOTOR CO.

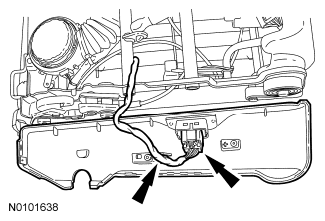

Separate the pin-type retainer, disconnect the lumbar switch and remove the outboard outer cover.

Fig 4: Locating Lumbar Switch And Outboard Outer Cover
Courtesy of FORD MOTOR CO.
Disengage the retainers and remove the power lumbar switch.
To install, reverse the removal procedure.
