Liftgate Latch: Notes

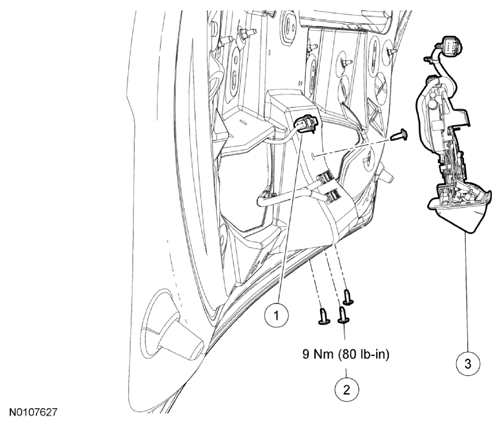

Fig 1: Liftgate Latch, Electrical Connector And Mounting Bolts With Torque Specifications
G08725097Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Liftgate latch electrical connector (part of 14A583)
2 N807675 Liftgate latch bolts (4 required)
3 7843150 Liftgate latch
