Hood Latch: Notes

NOTE: Radiator grille shown in illustration removed for clarity.

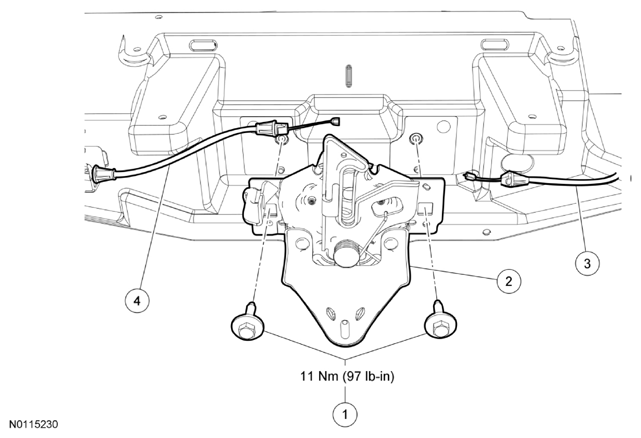

Fig 1: Hood Latch, Release Cable And Mounting Bolts With Torque Specifications
G08725079Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N808727 Hood latch bolts (2 required)
2 16700 Hood latch
3 16916 Hood latch release cable
4 16916 Secondary hood latch release cable
