Home >> Lincoln >> 2013 >> MKT Base, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Handles, Locks, Latches And Entry Systems >> General Procedures >> Latch Lubrication

Latch Lubrication

MATERIAL SPECIFICATIONS

Item Specification
Multi-Purpose Grease
XG-4 and/or XL-5		 ESB-M1C93-B
  1. Open the door.
  2. Using a screwdriver, fully close the latch (2 clicks).

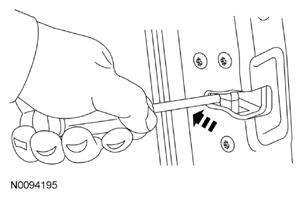

    Fig 1: Checking Latch Operation Using Screwdriver
    G08725077Courtesy of FORD MOTOR CO.
  3. Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.

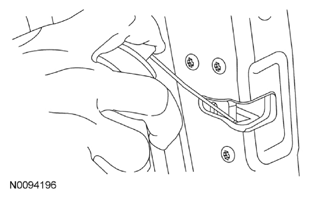

    Fig 2: Spraying Multi-Purpose Grease Into Door Latch Opening
    G08725078Courtesy of FORD MOTOR CO.
  4. Open the latch using either the interior or exterior door handle.
  5. Open and close the door several times to circulate the lubricant inside the latch.
  6. Wipe off any excess grease.
