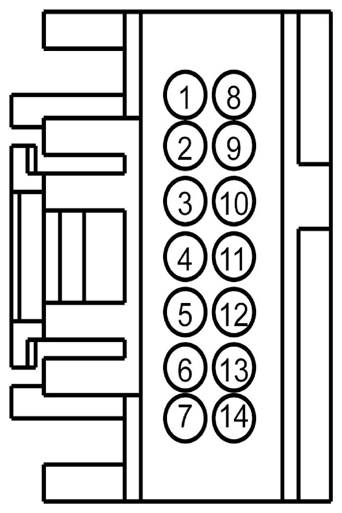

Audio Digital Signal Processing (DSP) Module Connector End View (C4326B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RME10 (WH-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - | |
| 2 | RME07 (WH-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - | |
| 3 | RME11 (YE-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER - | |
| 4 | RME08 (GY-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER - | |
| 5 | RME30 (VT-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER REAR - | |
| 6 | RME06 (GY-YE) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - | |
| 7 | RME29 (BU-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP - | |
| 8 | VME10 (WH-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | |
| 9 | WME07 (WH) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | |
| 10 | VME11 (VT-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER + | |
| 11 | VME08 (GN-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER + | |
| 12 | VME30 (GN-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER REAR + | |
| 13 | VME06 (GN) | 18 | CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + | |
| 14 | VME29 (GN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP + |
| Available Pigtail Kits | |

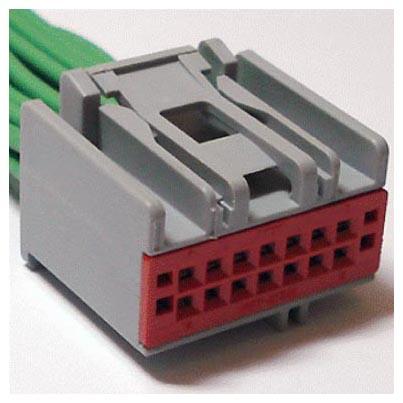

| Pigtail Kit Part Number WPT-287 | Service Part Number: 3U2Z-14S411-JEA Gauge: 18 Pin material: Tin Cavities: 13 Vehicle Uses
|

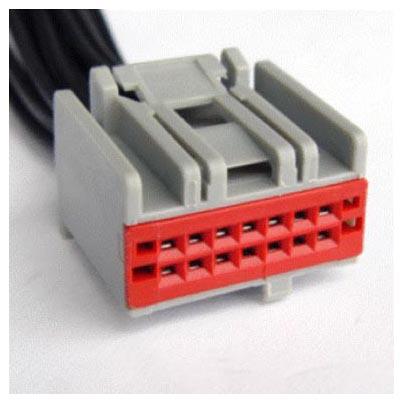

| Pigtail Kit Part Number WPT-974 | Service Part Number: 3U2Z-14S411-JEB Gauge: 18 Pin material: Silver Cavities: 14 Vehicle Uses
|
