Audio Rear Control Unit (RCU) Module Connector End View (C3077)

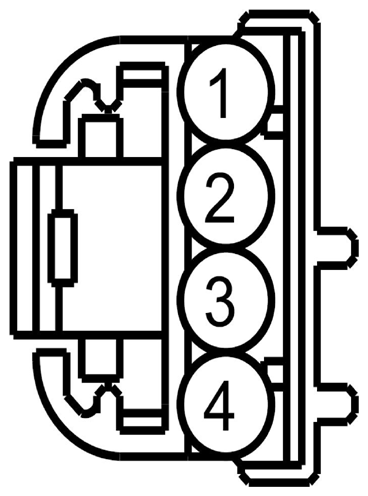

Fig 1: Audio Rear Control Unit Module Connector End View (C3077)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP06 (BNRD)	22	FUSE - 6 OR CIRCUIT BREAKER
2	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH
3	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW
4	GD374 (BK-WH)	22	GROUND - TUNNEL (BC3T)

Available Pigtail Kits

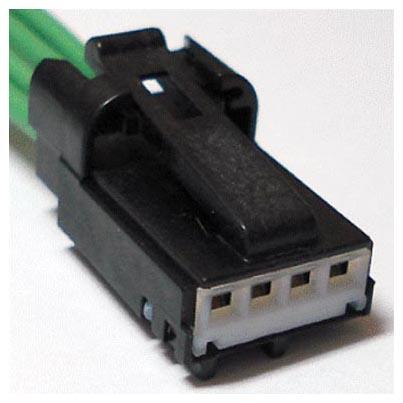

Pigtail Kit Part Number WPT-874	Service Part Number: 6U2Z-14S411-JA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Relay - Oil Level Sensor - Compass Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature

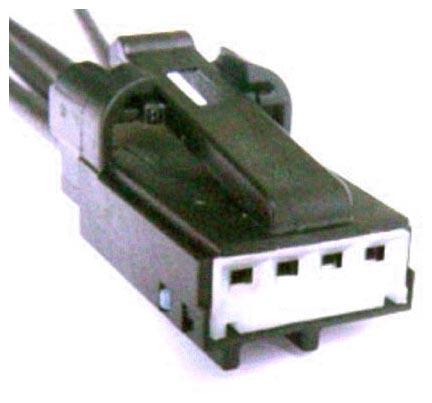

Pigtail Kit Part Number WPT-982	Service Part Number: 6U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH)
