Start/Stop Switch: Schematic

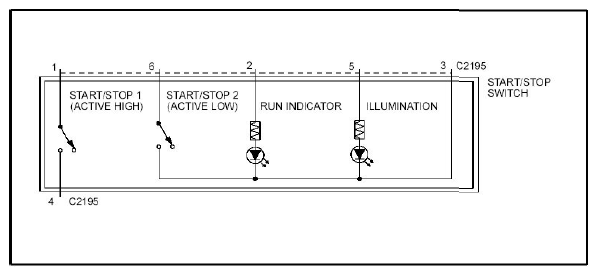

Fig 1: Start/Stop Switch Schematic

G09081925

Courtesy of FORD MOTOR CO.
