Backrest, Power

NOTE: LH shown in illustration, RH similar.

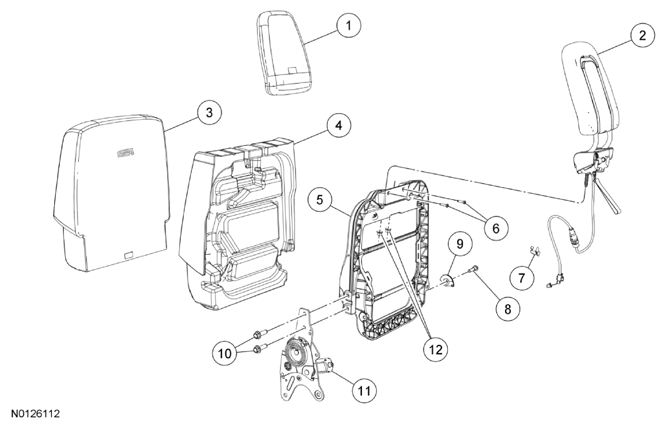

Fig 1: Exploded View Of Seat Backrest, Power - Third Row
G08010505Courtesy of FORD MOTOR CO.
Item Part Number Description
1 501A04 Head restraint cover
2 611A08 Head restraint assembly
3 66601 Backrest cover
4 66801 Backrest foam pad
5 613A39 Backrest frame
6 W505575 Head restraint bolts
7 W715018 Cable retainer
8 W714465 Pivot bolt
9 613B44 Bushing
10 W716033 Backrest latch-to-backrest frame bolts (2 required)
11 613D61 Backrest latch, power
12 W520112 Head restraint-to-backrest frame nuts
