Removal and Installation

  1. NOTE: Short front floor console shown in illustration, long front floor console similar.

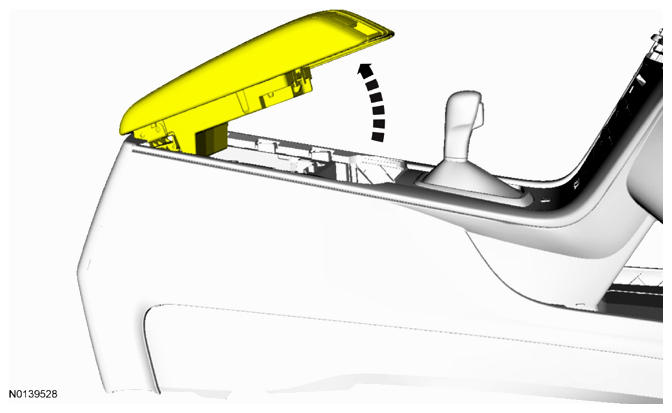

    Open the front floor console stowage bin door.

    G08724319
  2. NOTE: Short front floor console shown in illustration, long front floor console similar.

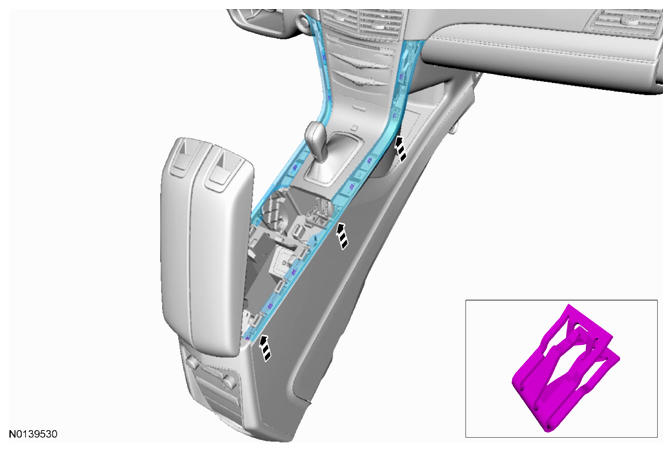

    Remove the LH and RH front floor console finish mouldings.

    G08724320

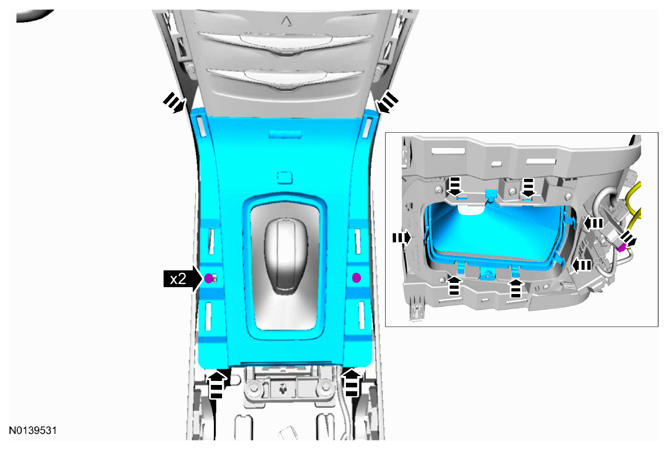

  3. Remove the front floor console selector lever trim panel.
    • Separate the selector lever boot from the trim panel.
    • Disconnect the electrical connector.
      G08724321

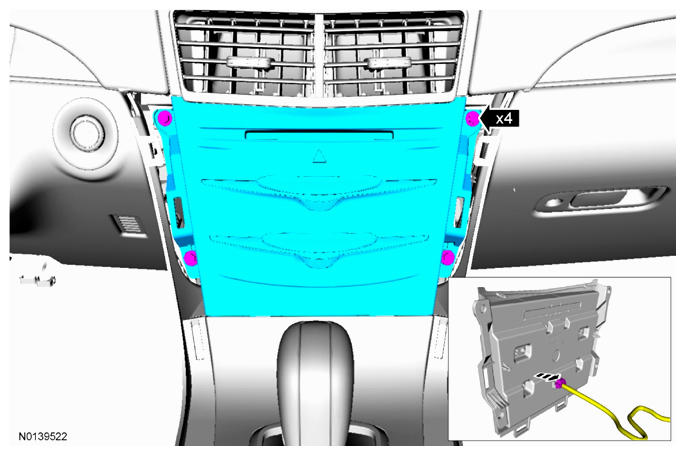

  4. Remove the 4 bolts and remove the Front Controls Interface Module (FCIM).
    • Disconnect the electrical connectors.
    • To install, tighten to 3 Nm (27 lb-in).
      G08724322
  5. To install, reverse the removal procedure.
