Removal and Installation

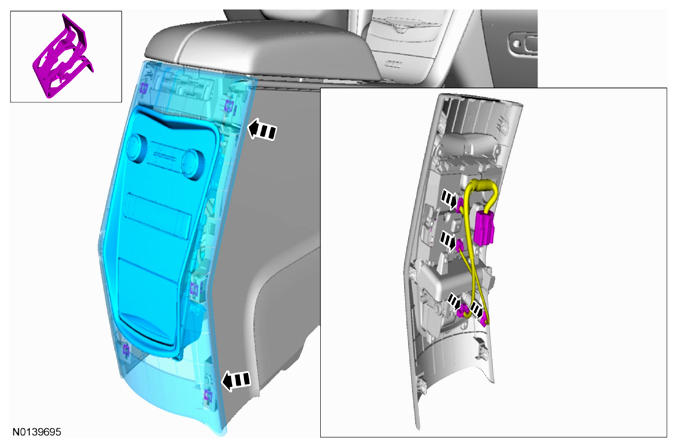

  1. Remove the front floor console rear control panel.
    • Disconnect the electrical connectors.
      G08724317

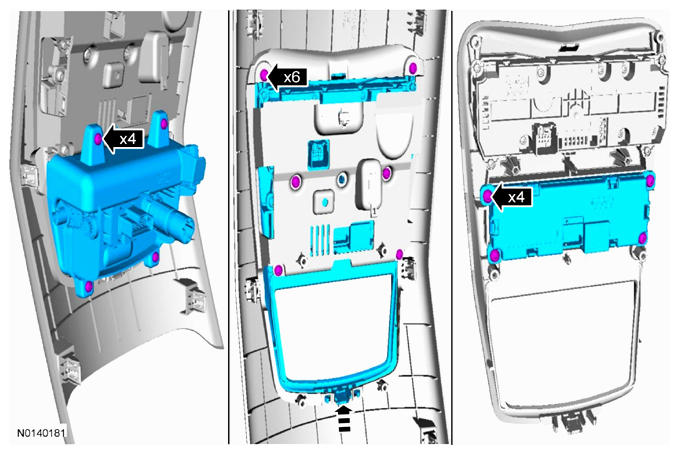

  2. Remove the audio Rear Control Unit (RCU) module.
    1. Remove the 4 screws and the power point panel.
    2. Remove the 6 screws and separate the face plate from the rear control panel.
    3. Remove the 4 screws and the audio RCU module.
      G08724318
  3. To install, reverse the removal procedure.
