Driver Door Module (DDM): Notes

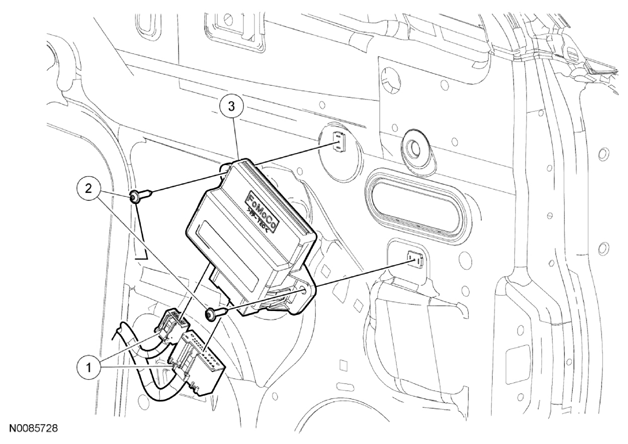

Fig 1: Identifying Driver Door Module, Electrical Connectors And Mounting Screws
G08725108Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Driver Door Module (DDM) electrical connectors (part of 14631)
2 W705314-S424 DDM screws (2 required)
3 13C791 DDM
