Side Obstacle Detection (SOD) Module: Notes

NOTE: Left rear quarter panel shown in illustration, right side similar. Rear bumper cover removed for clarity.

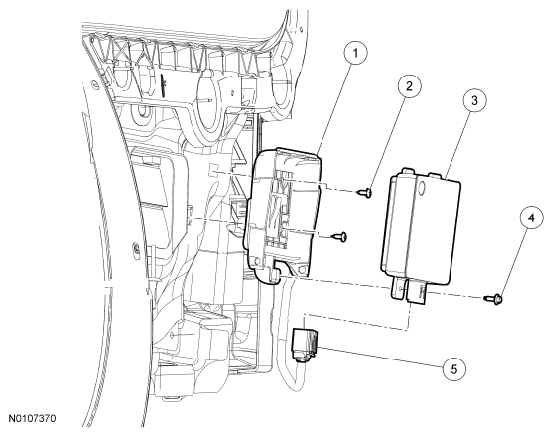

Fig 1: Identifying Side Obstacle Detection Module And Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14D189/14D190	Side Obstacle Detection Control Module - Right (SOD-R)/Side Obstacle Detection Control Module - Left (SOD-L) bracket
2	W705247	SOD-L/SOD-R bracket screws (2 required)
3	14C689	SOD-L/SOD-R
4	W503901	SOD-L/SOD-R screw and washer
5	-	SOD-L/SOD-R electrical connector (part of 14A005)
