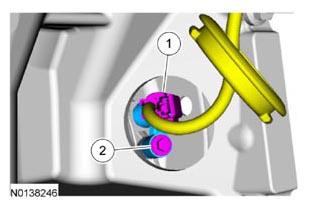

Crankshaft Position (CKP) Sensor: Installation

All vehicles

1. To install, reverse the removal procedure.
2. • 2. Tighten to 10 Nm (89 lb-in).

   3.5L GTDI

3. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
