OEM Ground Distribution: Grounds: G201

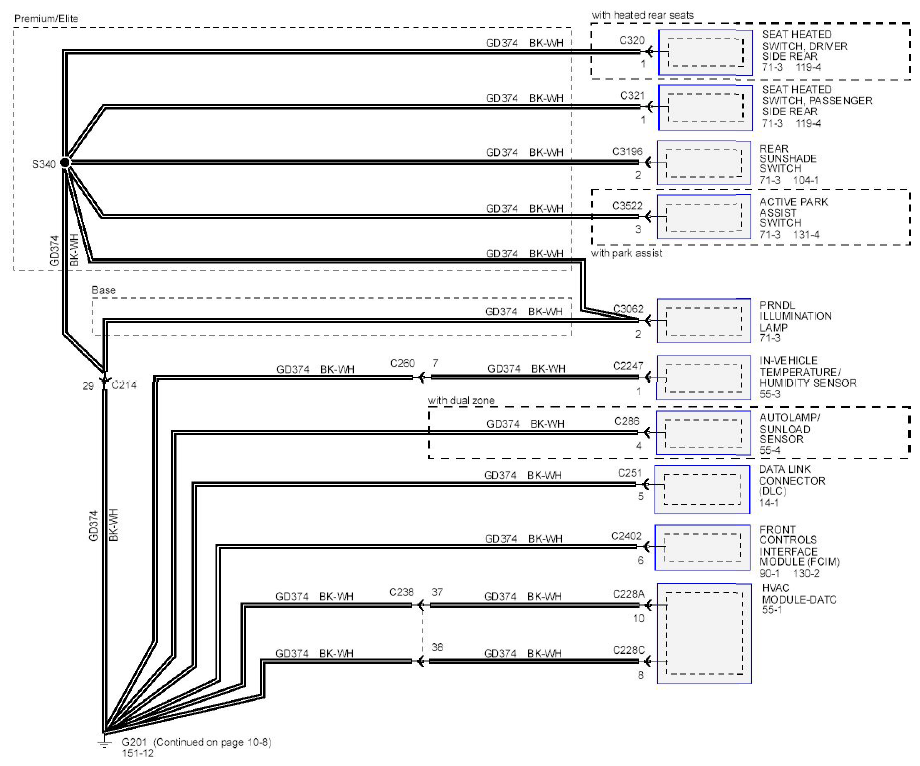

Fig 1: Ground Distribution (G201) - Circuit Diagram (1 Of 2)
G09080016Courtesy of FORD MOTOR CO.

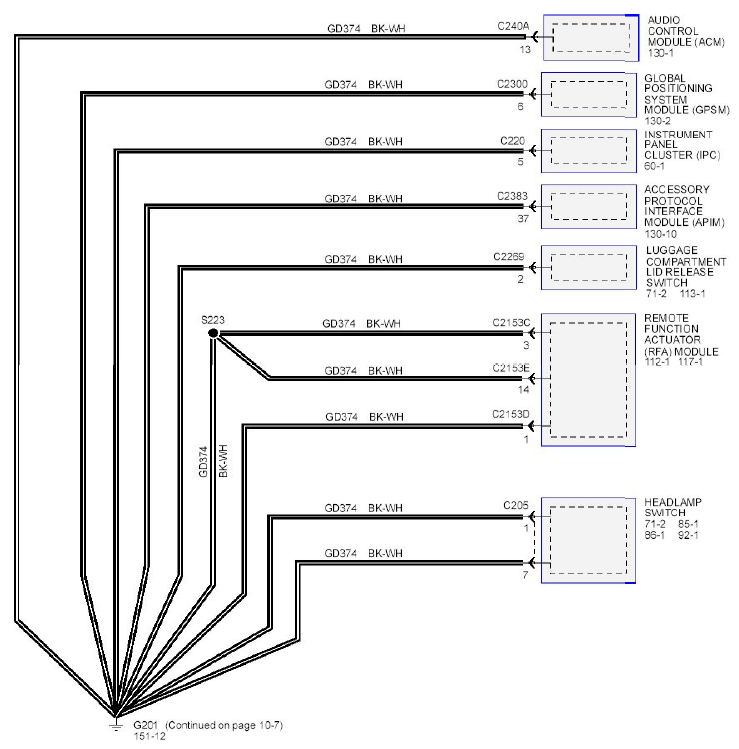

Fig 2: Ground Distribution (G201) - Circuit Diagram (2 Of 2)
G09080017Courtesy of FORD MOTOR CO.
