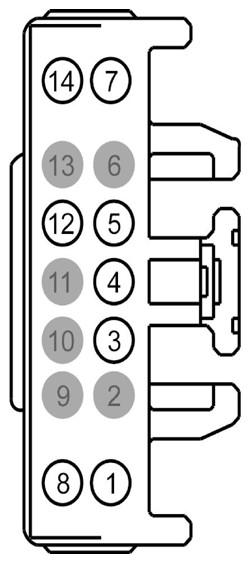

Heated Steering Wheel Module (HSWM) Connector End View (C2406)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP36 (BU-BN) | 18 | FUSE - 36 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 5 | CHS71 (BU) | 22 | CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER | |
| 6 | * | * | Not Used | |
| 7 | RHS72 (YE-GY) | 20 | CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT - | |
| 8 | CHS72 (YE-BU) | 20 | CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT + | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | RHS73 (BN-BU) | 22 | CTRL MOD. - HEATER STEERING WHEEL # SENSOR | |
| 13 | * | * | Not Used | |
| 14 | GD375 (BK-BU) | 18 | GROUND - TUNNEL # 2ND POINT (BC3T) |
| Available Pigtail Kits | |

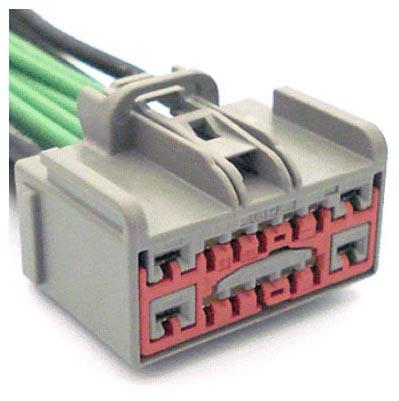

| Pigtail Kit Part Number WPT-741 | Service Part Number: 3U2Z-14S411-BJAA Gauge: 12 16 Pin material: Tin Cavities: 14 Vehicle Uses
|

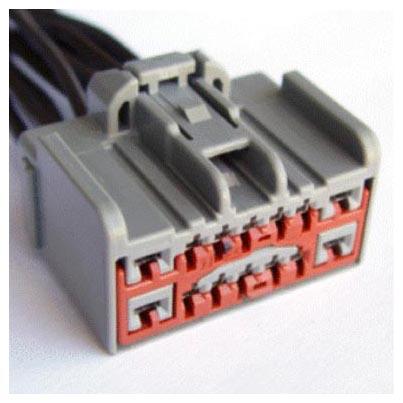

| Pigtail Kit Part Number WPT-955 | Service Part Number: 3U2Z-14S411-BJAC Gauge: 12 14 16 Pin material: Tin & Silver Cavities: 14 Vehicle Uses
|
