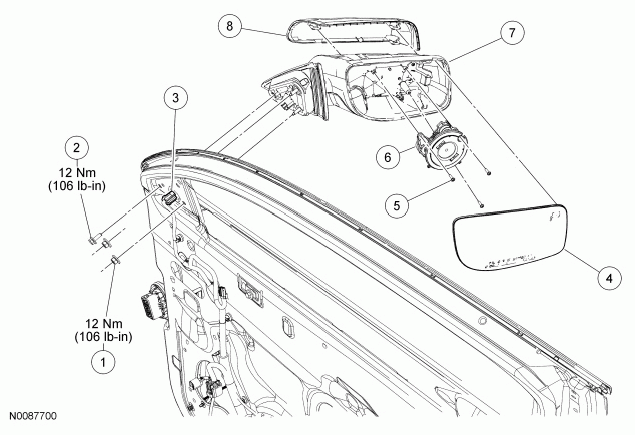

Exterior Mirrors - Exploded View
NOTE:
RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714313 | Exterior mirror nut (2 required) |
| 2 | W705968 | Exterior mirror bolt |
| 3 | 14630 RH/14631 LH | Exterior mirror electrical connector |
| 4 | 17K707 RH/17T675 LH | Exterior mirror glass |
| 5 | - | Exterior mirror screw (3 required) (part of 17D696) |
| 6 | 17D696 | Exterior mirror motor |
| 7 | 17682 RH/17683 LH | Exterior mirror |
| 8 | 17D742 RH/17D743 LH | Exterior mirror cover |
- For additional information, refer to the appropriate procedures in this information.
