Vehicle Dynamics Module (VDM) Connector End View (C4396B)

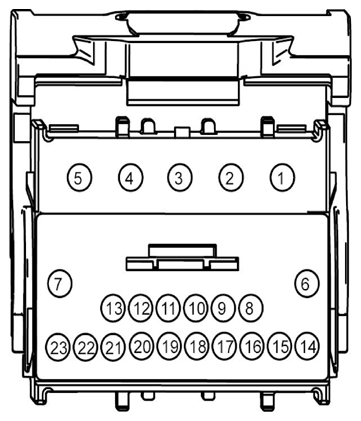

Fig 1: Vehicle Dynamics Module Connector End View (C4396B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RCD03 (VT-BN)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT -
2	*	*	Not Used
3	*	*	Not Used
4	CCD04 (GY-YE)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT +
5	RCD04 (BU-OG)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT -
6	CCD03 (WH-BU)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT +
7	CBP33 (WH-BN)	14	FUSE - 33 OR CIRCUIT BREAKER
8	*	*	Not Used
9	LCD23 (GN-OG)	22	CTRL MOD. - CDC # SENSORS 2 +
10	*	*	Not Used
11	*	*	Not Used
12	VCD10 (BN)	22	SENSOR - SUSPENSION VERTICAL POSITION FRONT LEFT
13	*	*	Not Used
14	*	*	Not Used
15	LCD02 (YE-GN)	22	CTRL MOD. - CDC # SENSORS +
16	*	*	Not Used
17	RCD02 (GN-BN)	22	CTRL MOD. - CDC # SENSORS -
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	VCD11 (GY-VT)	22	SENSOR - SUSPENSION VERTICAL POSITION FRONT RIGHT
23	*	*	Not Used
