Power Steering Control Module (PSCM) Connector End View (C1467B)
Power Steering Control Module (PSCM) Connector End View (C1467B)

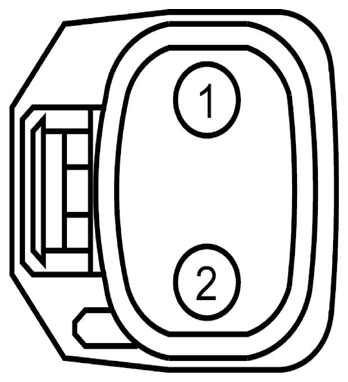

Fig 1: Power Steering Control Module Connector End View (C1467B)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
SBF04 (GN-RD)
08
FUSE - 4
2
GD178 (BK-VT)
8
GROUND - CHASSIS/BATTERY #2
