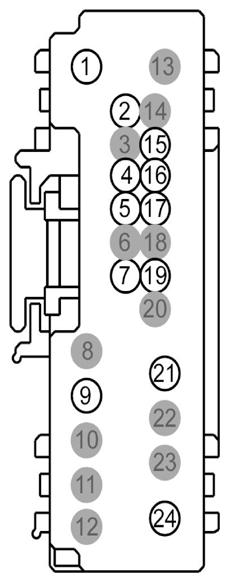

Driver Door Module (DDM) Connector End View (C501B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP07 (WH-RD) | 22 | FUSE - 7 OR CIRCUIT BREAKER | |
| 2 | CPM03 (BU-WH) | 22 | CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT | |
| 3 | * | * | Not Used | |
| 4 | CPM29 (GN) | 22 | CTRL MOD. - LEFT MIRROR UP | |
| 5 | CPM28 (BU-BN) | 22 | CTRL MOD. - LEFT MIRROR RIGHT | |
| 6 | * | * | Not Used | |
| 7 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 8 | * | * | Not Used | |
| 9 | LPM30 (GY-VT) | 22 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | CPS14 (GY-VT) | 22 | SWITCH - MEMORY SET + | |
| 16 | CPS15 (VT-WH) | 22 | SWITCH - MEMORY DRIVER P1 | |
| 17 | CPS16 (YE) | 22 | SWITCH - MEMORY DRIVER P2 | |
| 18 | * | * | Not Used | |
| 19 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 20 | * | * | Not Used | |
| 21 | RPM30 (YE) | 22 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) - | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT (BC3T) |

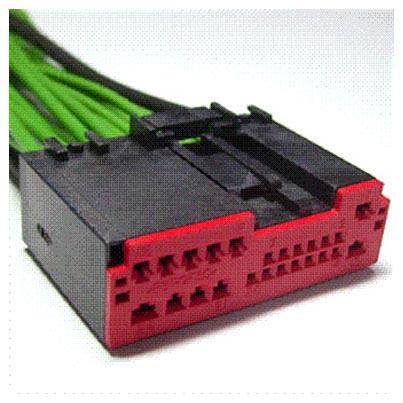

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1126 | Service Part Number: AU2Z-14S411-ATA Gauge: 12 16 18 Pin material: Tin & Silver Cavities: 24 Vehicle Uses
|
