Driver Door Module (DDM) Connector End View (C501A)

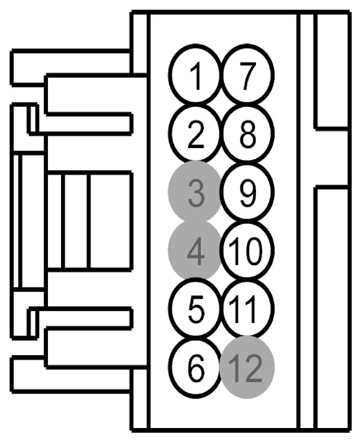

Fig 1: Driver Door Module Connector End View (C501A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VPM36 (BN-YE)	22	SENSOR - LEFT MIRROR POSITION # VERTICAL
2	VPM35 (YE-BU)	22	SENSOR - LEFT MIRROR POSITION # HORIZONTAL
3	*	*	Not Used
4	*	*	Not Used
5	CPK19 (BU-GN)	22	SWITCH - LOCK DRIVER
6	CPK23 (YE-VT)	22	SWITCH - HANDLE UNLOCK DRIVER
7	CPM21 (YE-VT)	22	SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS)
8	CPM20 (BN-WH)	22	SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS)
9	CPM17 (BU-GN)	22	SWITCH - POWER MIRROR # LEFT MIRROR UPWARD (IF PLUS)
10	CPM16 (BN-BU)	22	SWITCH - POWER MIRROR # LEFT MIRROR RIGHTWARD (IF PLUS)
11	CPM23 (GY)	22	SWITCH - POWER MIRROR # COMMON ALL MOTORS (LEFT AND RIGHT)
12	*	*	Not Used

Available Pigtail Kits

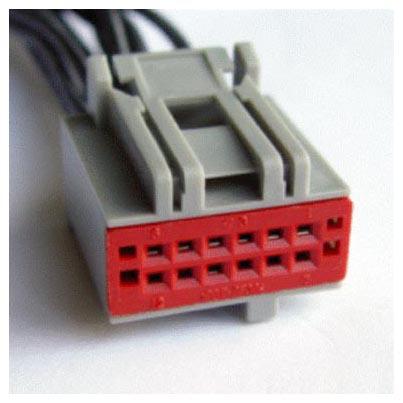

Pigtail Kit Part Number WPT-949	Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety

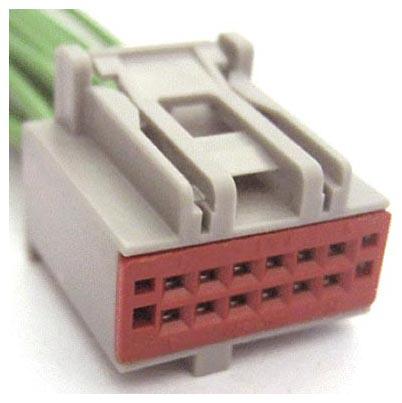

Pigtail Kit Part Number WPT-760	Service Part Number: 3U2Z-14S411-BMAA Gauge: 18 Pin material: Tin Cavities: 12 Vehicle Uses Coil - Ignition Lamp - Storage Compartment - Trunk Mirror - Rearview Module - Heated Seat (Rear)
