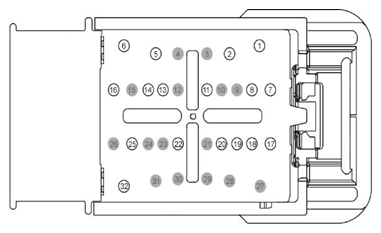

| 1 |
SBP03 (BU-RD) |
12 |
FUSE - 3 OR CIRCUIT BREAKER |
|
| 2 |
SBP05 (GY-RD) |
14 |
FUSE - 5 OR CIRCUIT BREAKER |
|
| 2 |
SBP05 (GY-RD) |
18 |
FUSE - 5 OR CIRCUIT BREAKER |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
SBP02 (YE-RD) |
18 |
FUSE - 2 OR CIRCUIT BREAKER |
|
| 6 |
SBP01 (RD) |
12 |
FUSE - 1 OR CIRCUIT BREAKER |
|
| 7 |
CBP33 (WH-BN) |
14 |
FUSE - 33 OR CIRCUIT BREAKER |
|
| 8 |
CBP34 (VT-BN) |
20 |
FUSE - 34 OR CIRCUIT BREAKER |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
SBP07 (WH-RD) |
22 |
FUSE - 7 OR CIRCUIT BREAKER |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
CLS28 (BU-WH) |
18 |
CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) |
|
| 14 |
CLS44 (VT-BN) |
18 |
CTRL MOD. - STOP |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
GD233 (BK) |
16 |
GROUND - COWL SIDE/PILLAR A LEFT (BC3T) |
|
| 17 |
CBP32 (GN-VT) |
20 |
FUSE - 32 OR CIRCUIT BREAKER |
|
| 18 |
CBP40 (YE-GN) |
22 |
FUSE - 40 OR CIRCUIT BREAKER |
|
| 19 |
CBP41 (BU) |
20 |
FUSE - 41 OR CIRCUIT BREAKER |
|
| 20 |
SBP09 (RD) |
22 |
FUSE - 9 OR CIRCUIT BREAKER |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
CLN09 (YE-GN) |
14 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
GD233 (BK) |
22 |
GROUND - COWL SIDE/PILLAR A LEFT (BC3T) |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
* |
* |
Not Used |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
SBP19 (BU-RD) |
16 |
FUSE - 19 OR CIRCUIT BREAKER |
|
