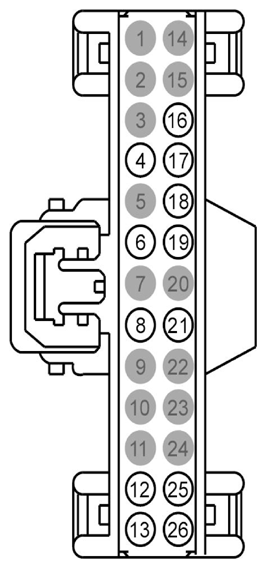

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
VME22 (VT-GN) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO + |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
VME90 (GY-BU) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
VME80 (VT) |
26 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
VME52 (BU) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
|
| 13 |
VME53 (VT) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
DME22 (*) |
18 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO D |
|
| 17 |
RME22 (GN-WH) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO - |
|
| 18 |
SME23 (VT-RD) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE |
|
| 19 |
VME91 (WH-BN) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
RME80 (BU) |
26 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
RME52 (GY) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
|
| 26 |
RME53 (BN) |
26 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
|
