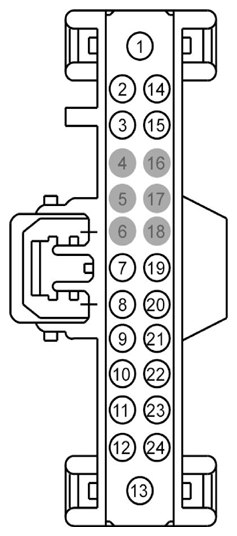

| 1 |
SBP29 (GY-RD) |
16 |
FUSE - 29 OR CIRCUIT BREAKER |
|
| 2 |
VME49 (WH) |
22 |
ANTENNA - ELECTRONIC HIDDEN (EHAM) # FM POS |
|
| 3 |
CE336 (GN-WH) |
26 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR RELAY ONE TOUCH START (SMRC) |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
SME23 (VT-RD) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE |
|
| 7 |
SME56 (BN) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER 2ND ENABLE |
|
| 8 |
RME51 (WH-BU) |
18 |
CTRL MOD. - AUDIO # CENTER IMAGE AUDIO - |
|
| 9 |
RME09 (BN-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - |
|
| 10 |
RME07 (WH-BN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - |
ANC |
| 10 |
RME17 (GY) |
26 |
CTRL MOD. - AUDIO # RADIO LEFT - |
without ANC |
| 11 |
RME10 (WH-OG) |
8 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - |
ANC |
| 11 |
RME18 (YE) |
26 |
CTRL MOD. - AUDIO # RADIO RIGHT - |
without ANC |
| 12 |
RME12 (BN-BU) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - |
|
| 13 |
GD374 (BK-WH) |
16 |
GROUND - TUNNEL (BC3T) |
|
| 14 |
VDB13 (BU) |
26 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
|
| 15 |
VDB14 (VT) |
26 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
DME17 (*) |
18 |
CTRL MOD. - AUDIO # RADIO D |
|
| 20 |
VME51 (BN-BU) |
18 |
CTRL MOD. - AUDIO # CENTER IMAGE AUDIO + |
|
| 21 |
VME09 (WH-GN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + |
|
| 22 |
VME07 (WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + |
ANC |
| 22 |
VME17 (GN) |
26 |
CTRL MOD. - AUDIO # RADIO LEFT + |
without ANC |
| 23 |
VME10 (WH-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + ANC |
|
| 23 |
VME18 (VT) |
26 |
CTRL MOD. - AUDIO # RADIO RIGHT + |
without ANC |
| 24 |
VME12 (BN-WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + |
|
