Removal and Installation

  1. Remove the instrument panel center finish panel. For additional information, Refer to INSTRUMENT PANEL AND CONSOLE .

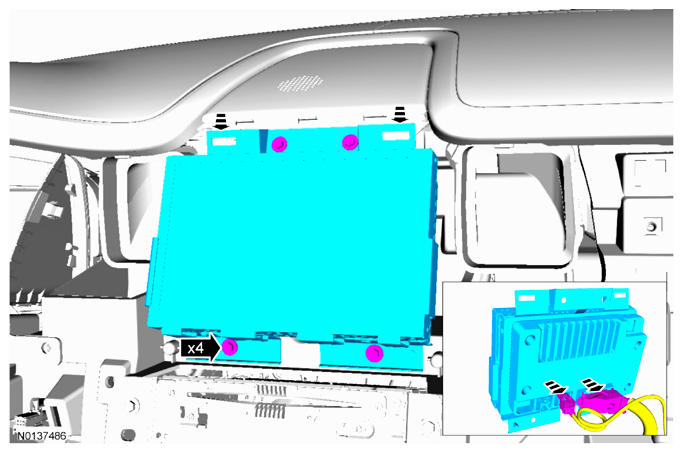

  2. Remove the 4 Front Display Interface Module (FDIM) bolts and remove the FDIM.
    • Disconnect the electrical connectors.
    • To install, tighten to 3 Nm (27 lb-in).
      G08721306
  3. To install, reverse the removal procedure.
