Head Up Display (HUD) Module: Notes

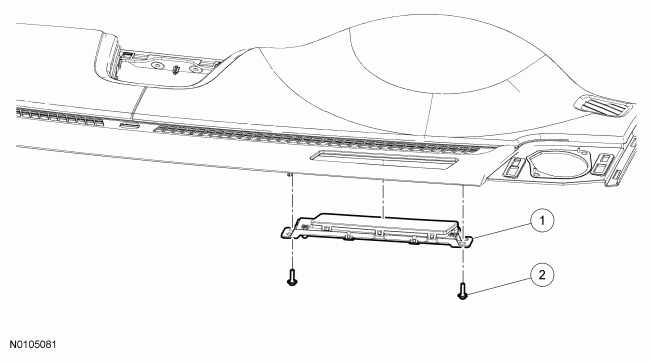

Fig 1: Identifying Head Up Display Module And Mounting Bolts
G06760185Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19G468 Head Up Display (HUD) module
2 W707281 HUD module bolts (2 required)
