Removal And Installation: Halfshaft: Notes

SPECIAL TOOLS CHART

	Halfshaft Remover 205-832
	Slide Hammer 100-001 T50T-100-A

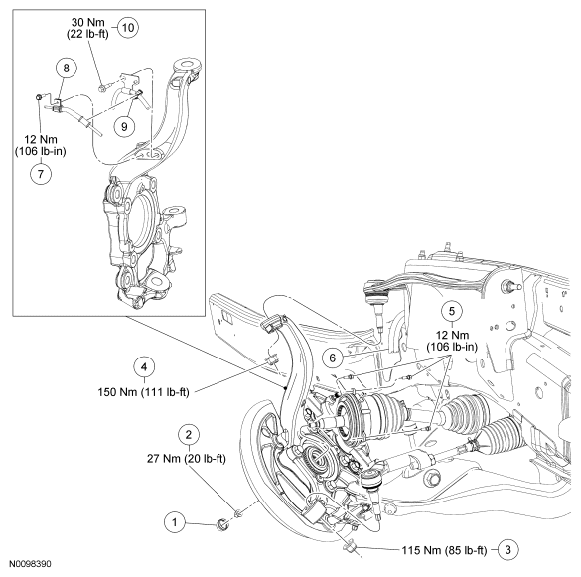

Fig 1: Halfshaft Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1131	Dust cap
2	N802827	Wheel hub nut
3	W520215	Tie-rod nut
4	W520215	Upper ball joint nut
5	W505211	Integrated Wheel End (IWE) bolts (3 required)
6	-	Vacuum vent and apply tube
7	-	Wheel speed sensor harness bracket bolt
8	-	Wheel speed sensor harness bracket (part of 2C204)
9	-	Brake flexible hose retainer (part of 2078)
10	W611633	Brake flexible hose bracket bolt
