Disassembly And Assembly: Halfshaft: Disassembly

Remove the halfshaft from the vehicle. For additional information, refer to HALFSHAFT in the Removal and Installation portion of this service information.
Remove the 2 boot clamps.

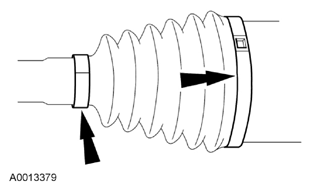

Fig 1: Locating Boot Clamps
Courtesy of FORD MOTOR CO.
Separate the boot from the inboard CV joint housing.

Fig 2: Locating Boot From Inboard CV Joint Housing
Courtesy of FORD MOTOR CO.
Remove the retaining ring.

Fig 3: Locating Retaining Ring
Courtesy of FORD MOTOR CO.
Remove the inboard CV joint housing.

Fig 4: Locating Inboard CV Joint Housing
Courtesy of FORD MOTOR CO.
Index-mark the inner race and ball cage.

Fig 5: Locating Index-Mark On Inner Race And Ball Cage
Courtesy of FORD MOTOR CO.
Remove the 6 balls.

Fig 6: Locating Ball Cage Balls
Courtesy of FORD MOTOR CO.
Remove the snap ring.

Fig 7: Locating Snap Ring
Courtesy of FORD MOTOR CO.
Remove the inner race and the ball cage.

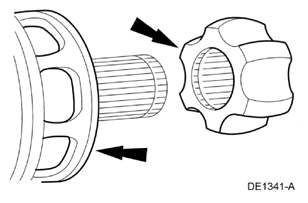

Fig 8: Locating Inner Race And Ball Cage
Courtesy of FORD MOTOR CO.
Remove the inboard boot.

Fig 9: Locating Inboard Boot
Courtesy of FORD MOTOR CO.
Remove the 2 boot clamps.

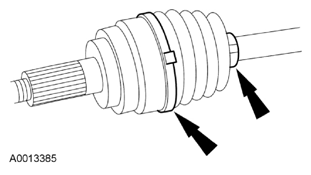

Fig 10: Locating Boot Clamps
Courtesy of FORD MOTOR CO.
Remove the outboard boot.

Fig 11: Locating Outboard Boot
Courtesy of FORD MOTOR CO.

NOTE: If the grease is contaminated, clean and inspect the joint for wear. Install a new outboard CV joint and interconnecting shaft assembly if worn/damaged.

Check the CV joint grease for contamination.
