Stabilizer Bar Bushing: Notes

SPECIAL TOOLS

Remover, Tie-Rod End
211-105 (T85M-3395-A)

Fig 1: Exploded View Of Stabilizer Bar Bushing (1 Of 2) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Catalytic converter-to-exhaust flexible pipe nuts (2 required)
2	W711918	Rear driveshaft-to-Power Transfer Unit (PTU) bolt (4 required)
3	5006930	Rear driveshaft assembly
4	5E212	Catalytic converter
5	3R827	Steering column shaft bolt
6	3C611B	Steering column shaft-to-dash seal
7	5801691	Lower steering column shaft joint cover nut (2 required)
8	3C611A	Lower steering column shaft joint cover

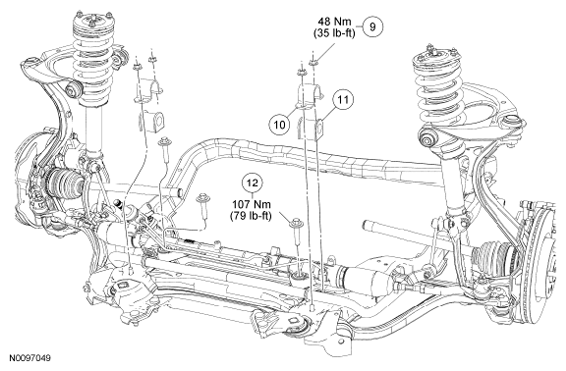

Fig 2: Exploded View Of Stabilizer Bar Bushing (2 Of 2) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	W520414	Stabilizer bar bracket nut (4 required)
10	5486	Stabilizer bar bushing bracket (2 required)
11	5484	Stabilizer bar bushing (2 required)
12	3C497	Steering gear-to-subframe bolt (3 required)
