Removal And Installation: Driveshaft: Driveshaft
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

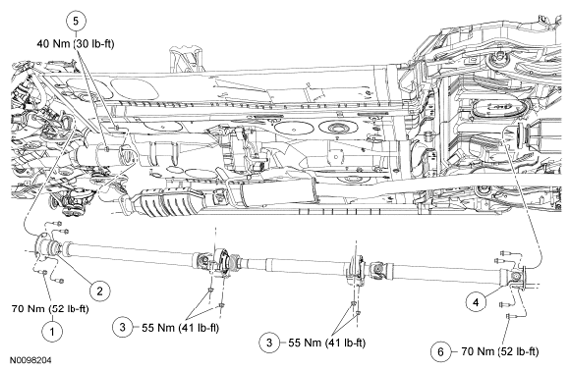

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W711960 | Front driveshaft-to-Power Transfer Unit (PTU) Driveshaft flange bolt (4 required) |
| 2 | - | Front driveshaft flange |
| 3 | W520113 | Center bearing support nuts (4 required) |
| 4 | - | Rear driveshaft flange |
| 5 | W705443 | Exhaust flex pipe flange nuts (2 required) |
| 6 | W711960 | Rear driveshaft-to-pinion flange bolt (4 required) |
