Knock Sensor (KS): Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Specialty Green Engine Coolant VC-10-A2 (US); CVC-10-A (Canada)	WSS-M97B55-A

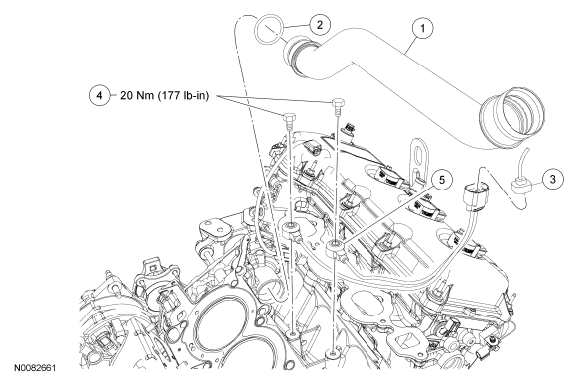

Fig 1: Lnock Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9N271	Coolant tube
2	8565	O-ring seal
3	14A464	Knock Sensor (KS) electrical connector
4	W704749	KS bolts (2 required)
5	12A699	KS
