3.5L Vehicles

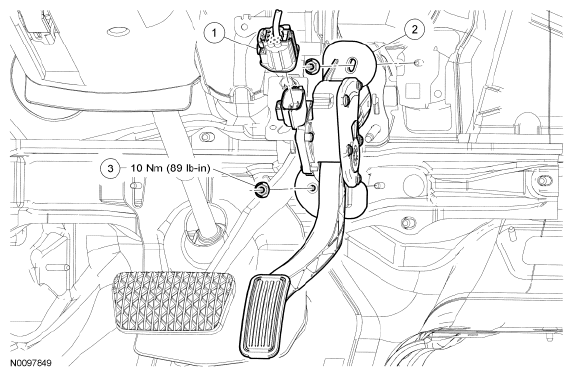

Fig 1: Exploded View Of Accelerator Pedal And Sensor Assembly (3.5L Vehicles)
G06271106Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector
2 9F836 Accelerator pedal and sensor assembly
3 W706131 Accelerator pedal and sensor assembly nut (2 required)
