With Bezel: Notes

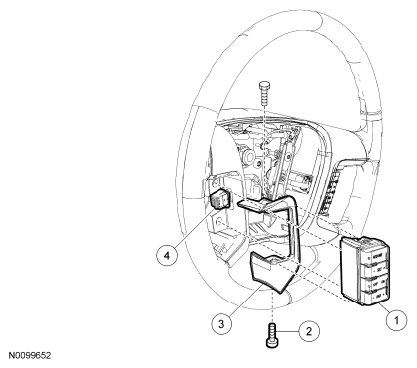

Fig 1: Identifying Cruise Control Switch Removal And Installation (With Bezel)
G06271347Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9C888 Cruise control switch
2 - Steering wheel controls bezel screws (2 required)
3 3D758 Steering wheel controls bezel
4 - Cruise control switch electrical connector (part of 14672)
