Connector End Views C914 - Rain Sensor Module

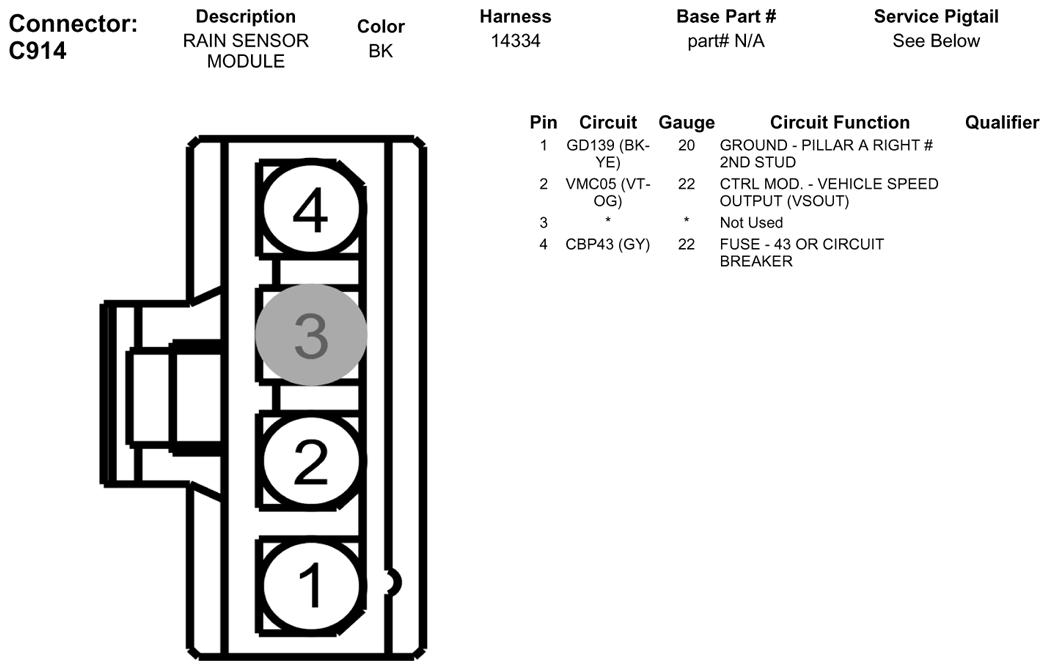

Fig 1: Connector End Views C914 - Rain Sensor Module
G07923272Courtesy of FORD MOTOR CO.
Available Pigtail Kits

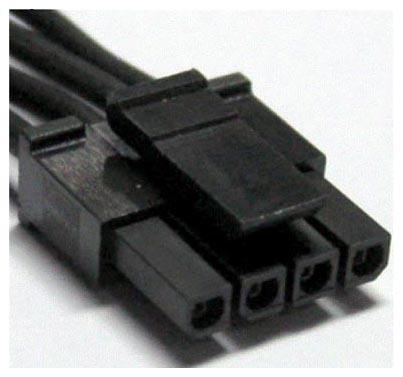

Pigtail Kit Part Number WPT-1155
G07923273
 Service Part Number: AU2Z-14S411-BRA
Gauge: 20
Pin material: Tin
Cavities: 4
Vehicle Uses
  • Sensor - Rain
