Connector End Views C3338 - Accessory Protocol Interface Module (2 Of 2)

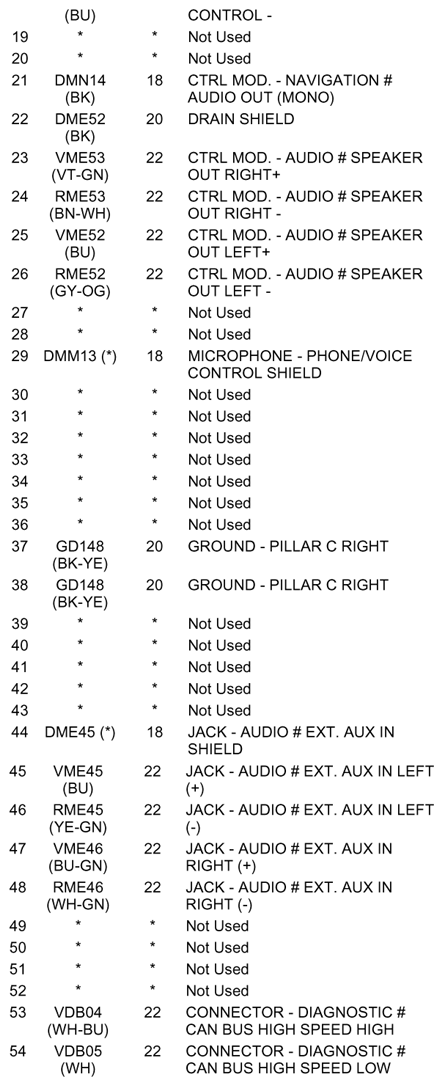

Fig 1: Connector End Views C3338 - Accessory Protocol Interface Module (2 Of 2)

G07923592

Courtesy of FORD MOTOR CO.
