Connector End Views C3253 - 4X4 Control Module

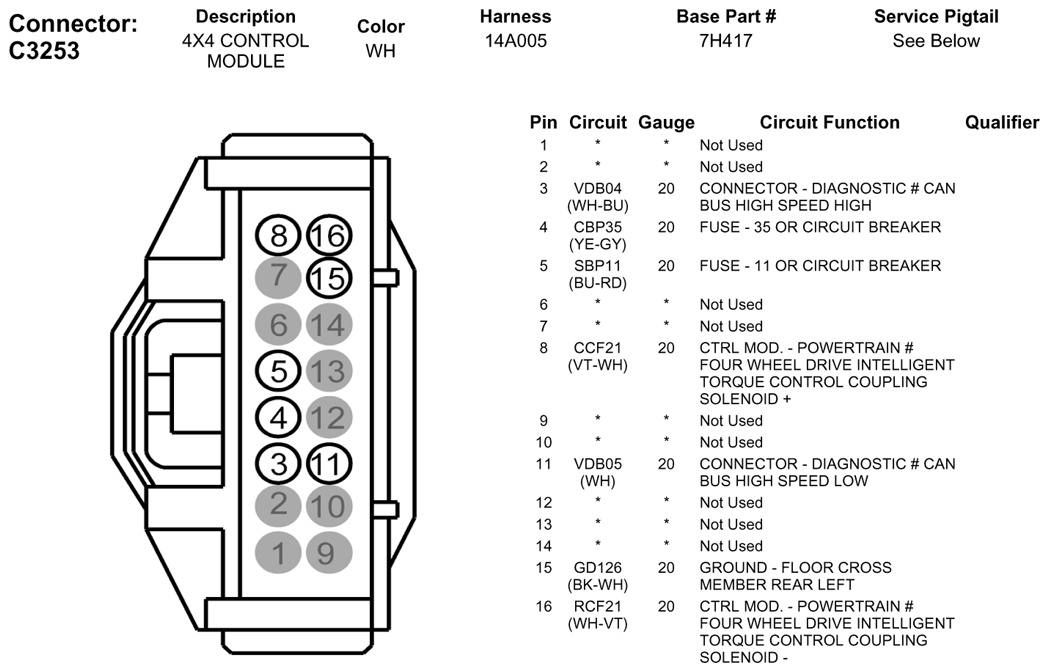

Fig 1: Connector End Views C3253 - 4X4 Control Module
G07923542Courtesy of FORD MOTOR CO.
Available Pigtail Kits

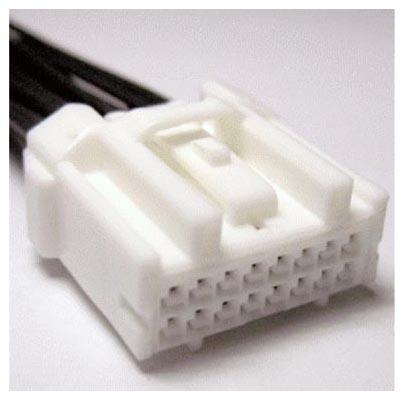

Pigtail Kit Part Number WPT-1170
G07923543
 Service Part Number: BU2Z-14S411-SA
Gauge: 20
Pin material: Tin (greased)
Cavities: 16
Vehicle Uses
  • Module - All Wheel Drive
