Connector End Views C3159 - Occupant Classification System Module (OCSM)

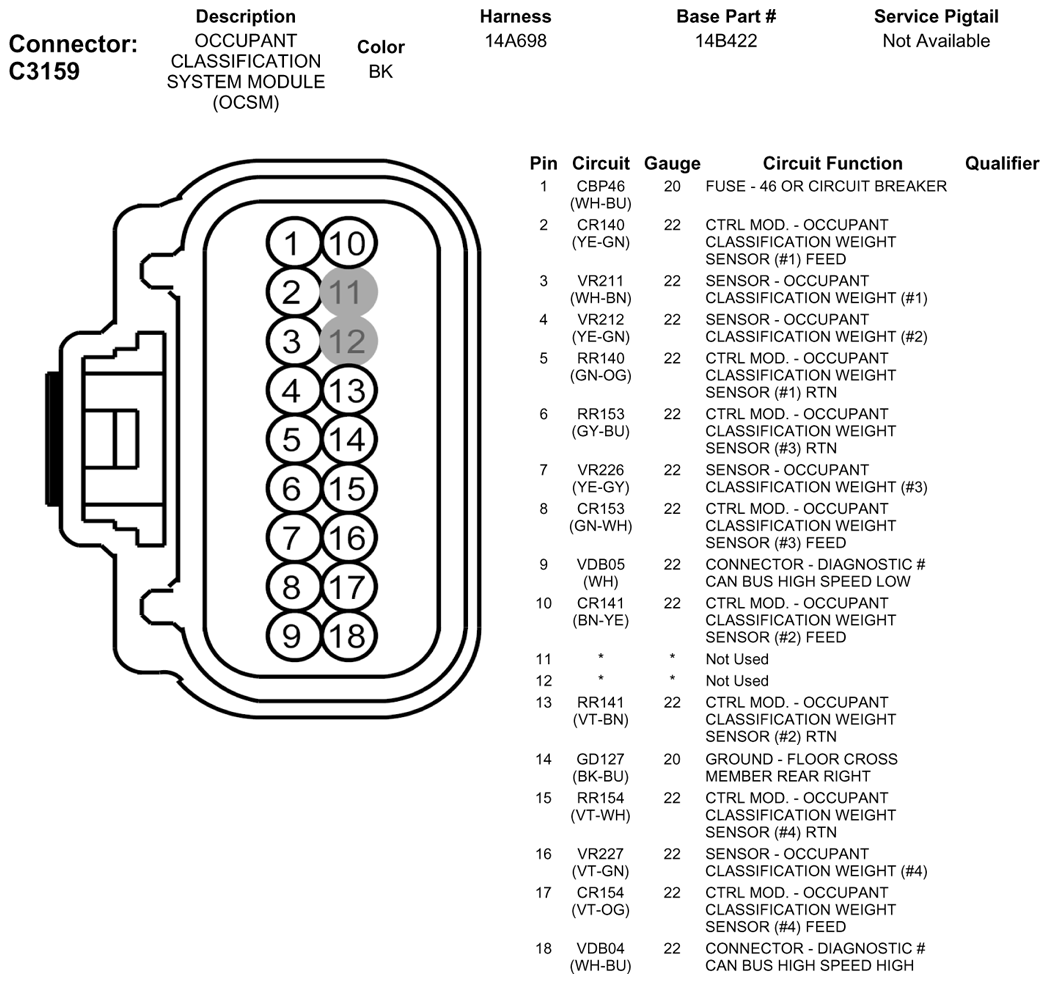

Fig 1: Connector End Views C3159 - Occupant Classification System Module (OCSM)

G07923516

Courtesy of FORD MOTOR CO.
