Connector End Views C2301 - Interior Lighting Control Module (ILCM)

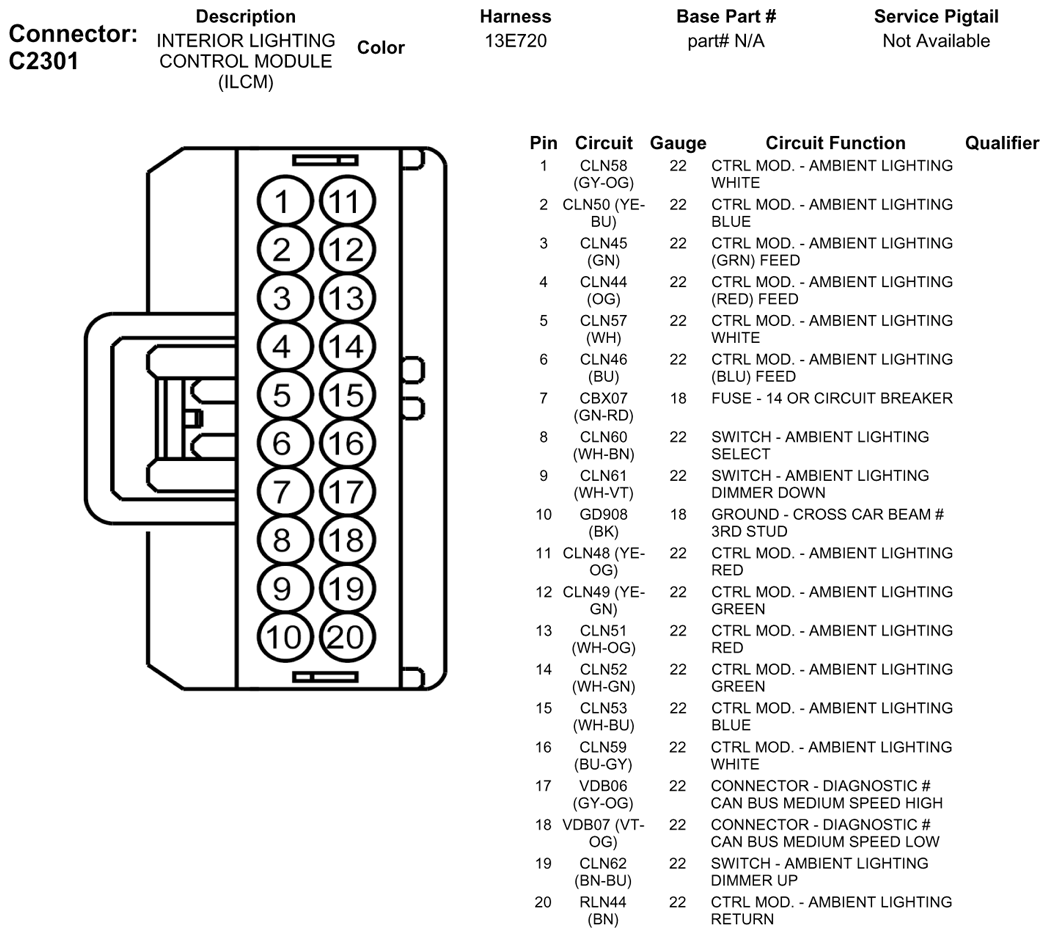

Fig 1: Connector End Views C2301 - Interior Lighting Control Module (ILCM)

G07923443

Courtesy of FORD MOTOR CO.
