Connector End Views C226 - Steering Angle Sensor Module (SASM)

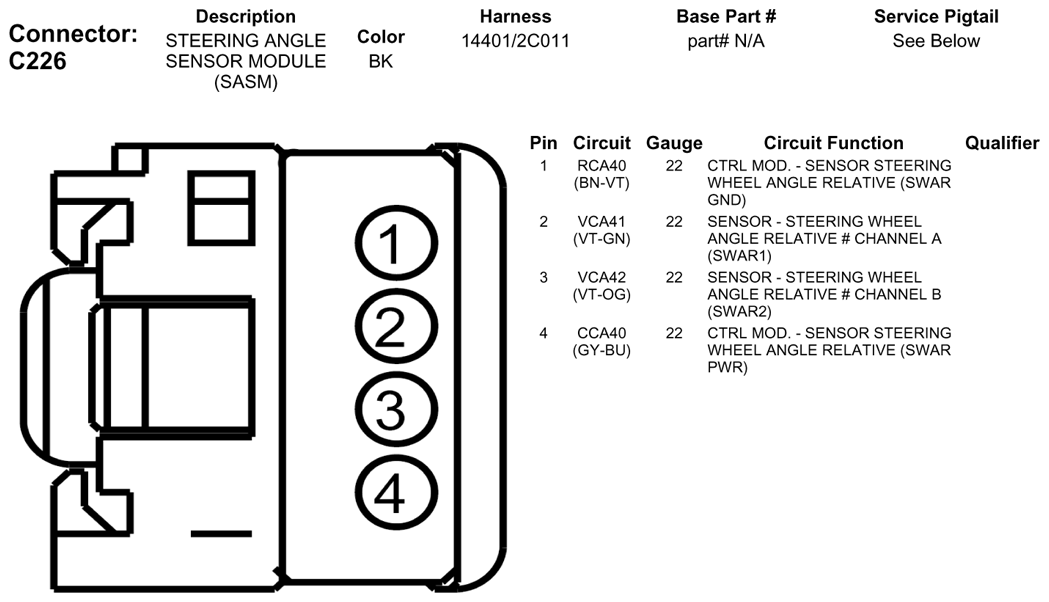

Fig 1: Connector End Views C226 - Steering Angle Sensor Module (SASM)
G07922987Courtesy of FORD MOTOR CO.
Available Pigtail Kits

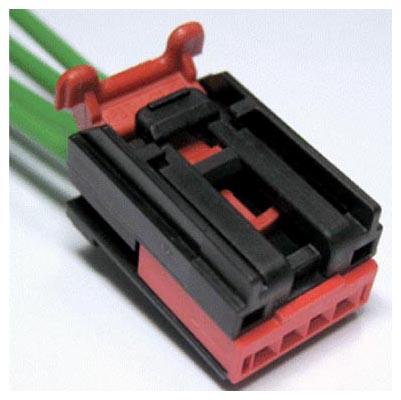

Pigtail Kit Part Number WPT-1154
G07922988
 Service Part Number: 9U2Z-14S411-ACA
Gauge: 18
Pin material: Silver
Cavities: 4
Vehicle Uses
  • Sensor - Power Steering Pressure
  • Sensor - Steering Wheel Position
