Connector End Views C1467B - Power Steering Control Module (PSCM)

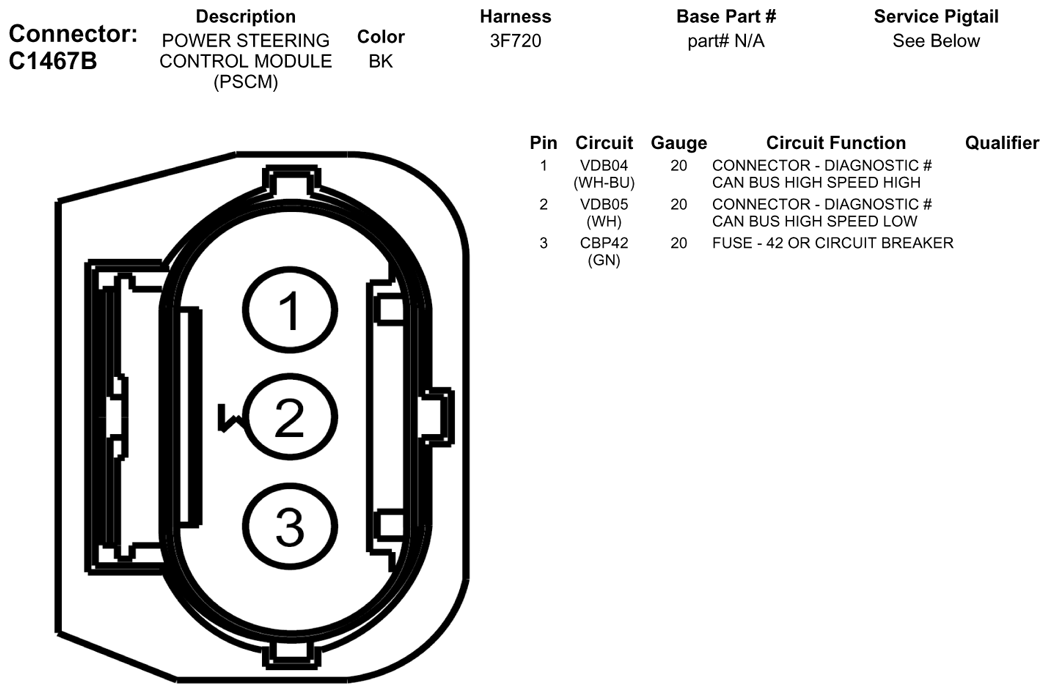

Fig 1: Connector End Views C1467B - Power Steering Control Module (PSCM)
G07923354Courtesy of FORD MOTOR CO.

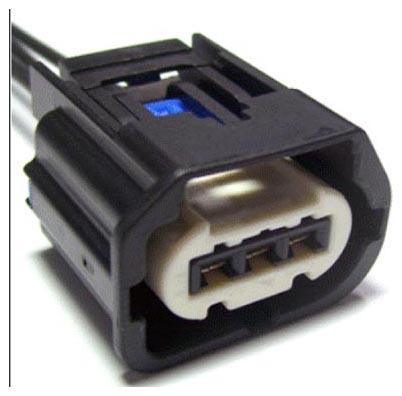

Available Pigtail Kits
Pigtail Kit Part Number WPT-1105
G07923355
 Service Part Number: AU2Z-14S411-APA
Gauge: 16
Pin material: Tin
Cavities: 3
Vehicle Uses
  • Module - Power Steering
