Connector End Views C1467A - Power Steering Control Module (PSCM)

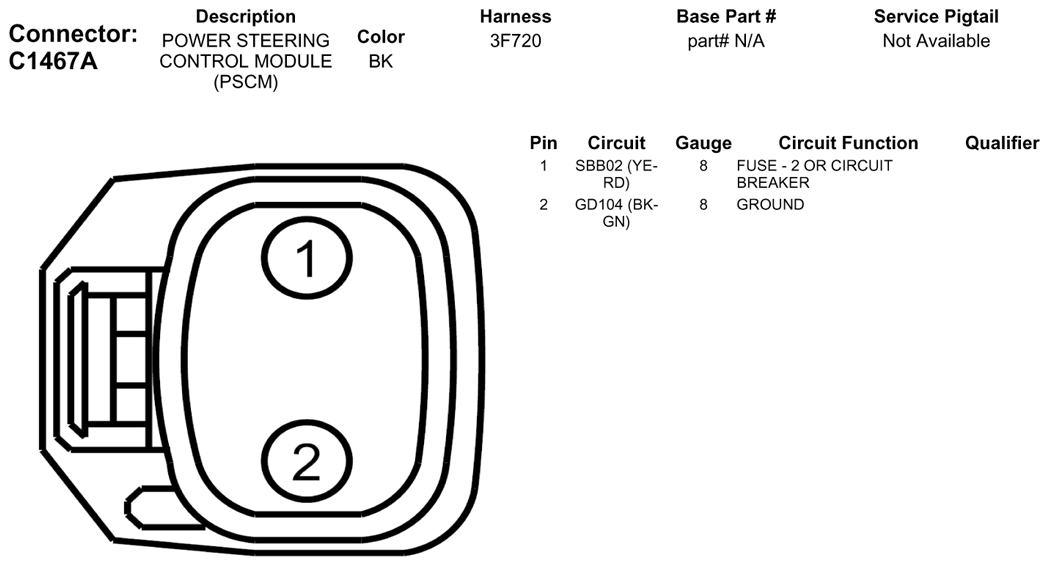

Fig 1: Connector End Views C1467A - Power Steering Control Module (PSCM)

G07923353

Courtesy of FORD MOTOR CO.
