Connector End Views C1368 - Electronic Throttle Control (ETC) Module

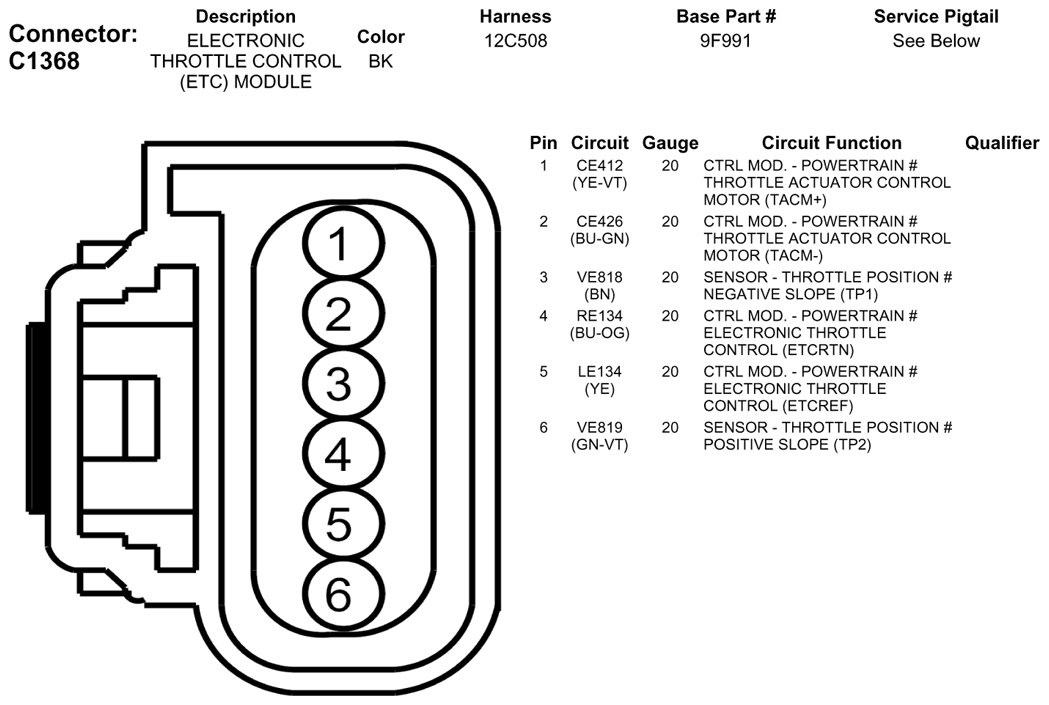

Fig 1: Connector End Views C1368 - Electronic Throttle Control (ETC) Module
G07923333Courtesy of FORD MOTOR CO.

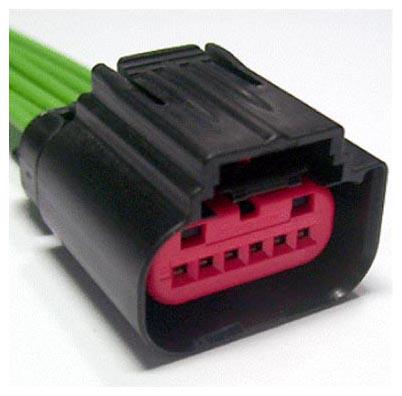

Available Pigtail Kits
Pigtail Kit Part Number WPT-1063
G07923334
 Service Part Number: AU2Z-14S411-MA
Gauge: 18
Pin material: Silver
Cavities: 6
Vehicle Uses
  • Control - Electronic Throttle
