Connector End Views C240A - Audio Control Module (2 Of 2)

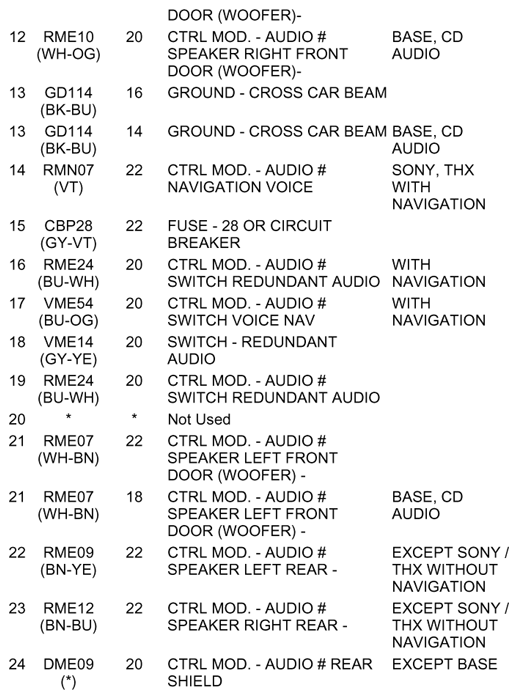

Fig 1: Connector End Views C240A - Audio Control Module (2 Of 2)

G07922996

Courtesy of FORD MOTOR CO.
