Global Positioning System Module (GPSM) - Fusion: Notes

NOTE: Steering wheel shown removed for clarity only.

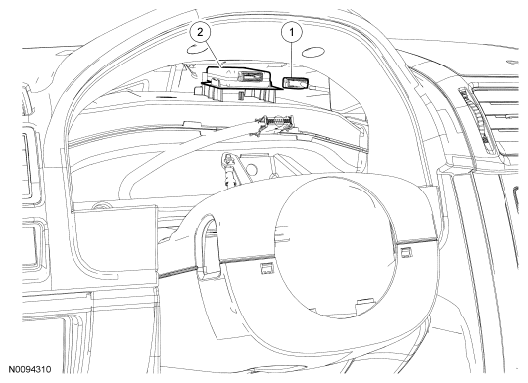

Fig 1: Identifying Global Positioning System Module And Electrical Connector (Fusion)
G06263200Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Global Positioning System Module (GPSM) electrical connector
2 10E893 GPSM
