Sony® Sound

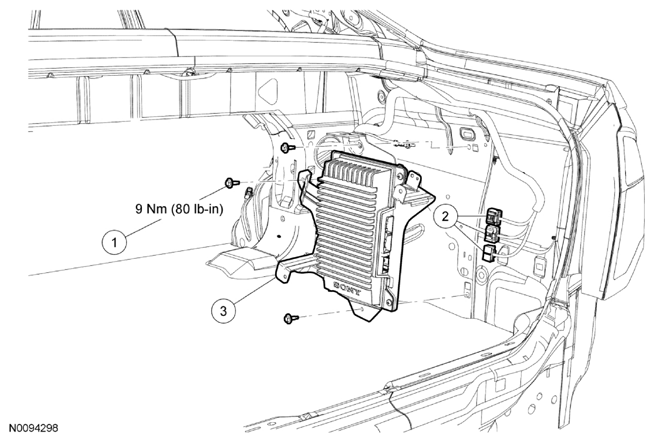

Fig 1: Audio Digital Signal Processing Module, Electrical Connectors And Bolts With Torque Specifications (Sony(R) Sound)
| Item | Part Number | Description |
|---|---|---|
| 1 | W505423-S | Audio Digital Signal Processing (DSP) module bolts (3 required) |
| 2 | - | Audio DSP module electrical connectors (part of 14A005) |
| 3 | 18B849 | Audio DSP module |
