Audio Control Module (ACM) - Fusion: Notes

NOTE: Without navigation shown, with navigation similar.

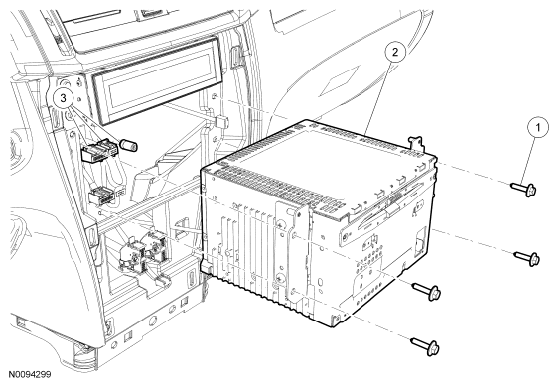

Fig 1: Identifying Audio Control Module, Electrical Connectors And Screws

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628	Audio Front Control Module (ACM) screws (4 required)
2	18806	ACM
3	-	ACM electrical connectors (part of 14401)
