Driver Door Module (DDM): Notes

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

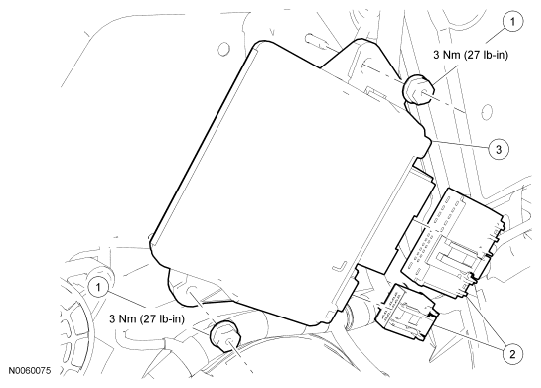

Fig 1: Driver Door Module (DDM), DDM Electrical Connectors And Nuts, With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Driver Door Module (DDM) nuts (2 required)
2	-	DDM electrical connectors (part of 14631)
3	13C791	DDM
