MKX Selector Lever

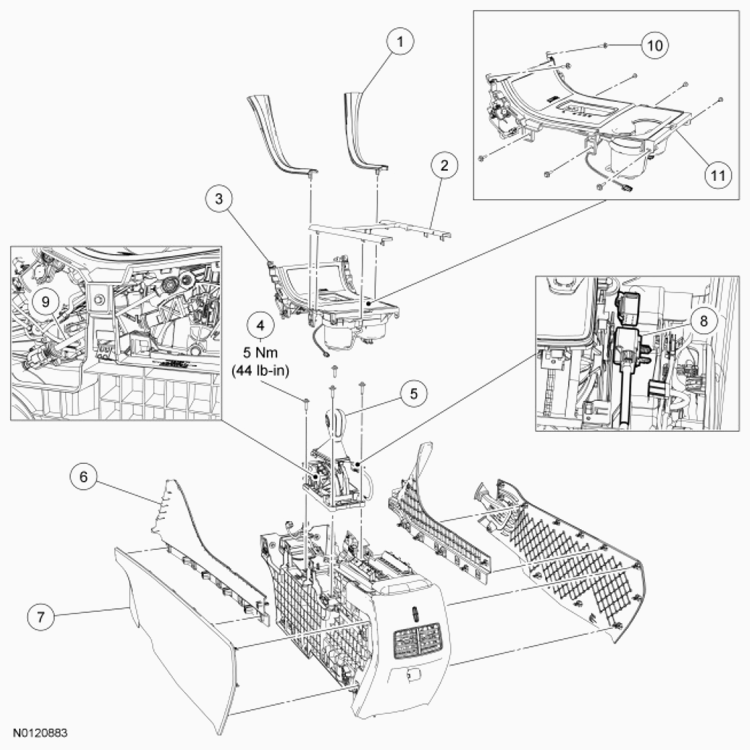

Fig 1: Exploded View Of Selector Lever Components With Torque Specifications - MKX Selector Lever

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78061A16	Upper finish molding
2	7804567B	Floor console H-panel
3	78045A76	Selector lever trim panel
4	W503926	Selector lever bolt (4 required)
5	7210	Selector lever
6	7804609	Upper floor console side trim panel
7	7804609	Lower floor console side trim panel
8	-	Selector lever electrical connector (part of 7210)
9	7E395	Selector lever cable
10	W707628	Selector lever trim panel screw (8 required)
11	78045A76	Selector lever trim panel
