Selector Lever Cable: 6F35: Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
3. Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .

   6F50/6F55

4. Disconnect the selector lever cable end from the manual control lever.

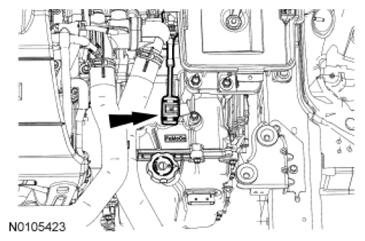

   Fig 1: Locating Selector Lever Cable End Of Manual Control Lever

   Courtesy of FORD MOTOR CO.
5. Release the 2 tabs, remove the selector lever cable from the selector lever cable bracket and position the cable aside.

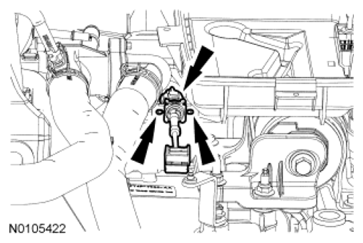

   Fig 2: Locating Selector Lever Cable Bracket And Tabs

   Courtesy of FORD MOTOR CO.

   6F35

6. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
NOTE: Slide the locking tab upwards to unlock the electrical connector.

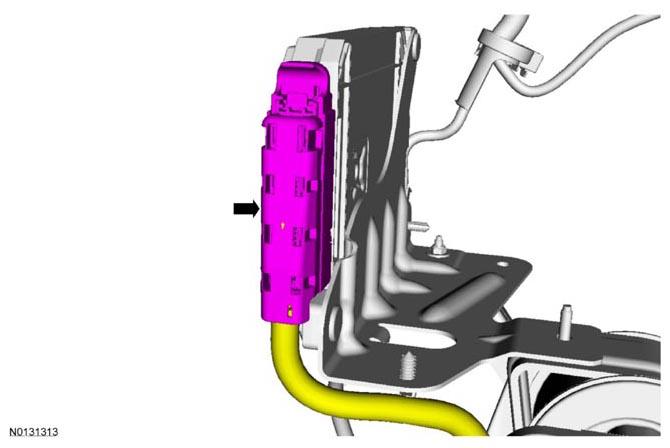

Fig 3: Locating TCM Electrical Connector
Courtesy of FORD MOTOR CO.
7. Disconnect the TCM electrical connector.
8. Disconnect the 3 battery cable pin-type retainers from the TCM bracket.

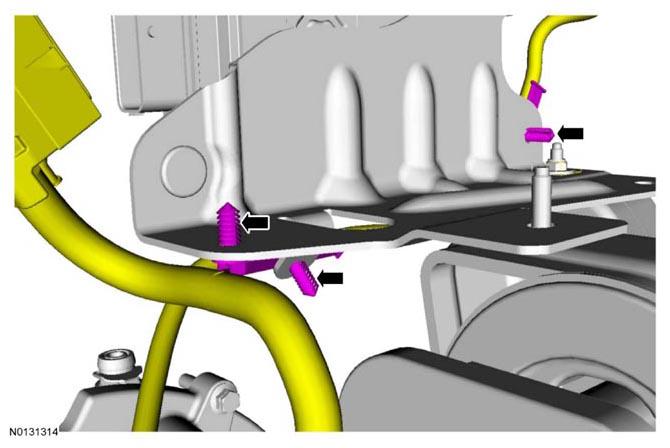

   Fig 4: Locating Battery Cable Pin-Type Retainers Of TCM Bracket

   Courtesy of FORD MOTOR CO.
9. Remove the TCM bracket nut, TCM and bracket.

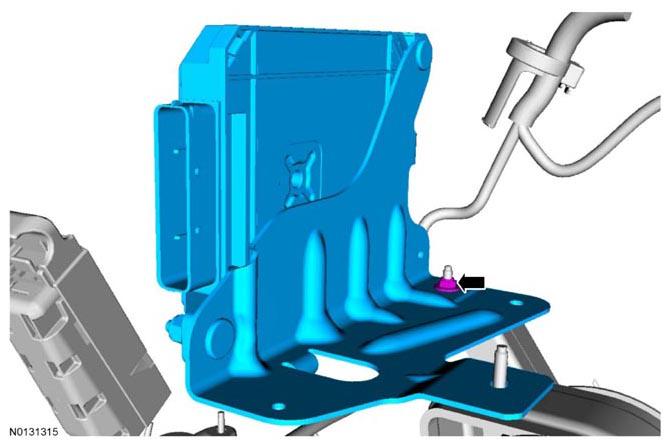

   Fig 5: Locating TCM Bracket Nut

   Courtesy of FORD MOTOR CO.
10. Disconnect the selector lever cable end from the manual control lever.
    Fig 6: Disconnecting Selector Lever Cable End From Manual Control Lever

    Courtesy of FORD MOTOR CO.
11. Release the 2 tabs, remove the selector lever cable from the selector lever cable bracket and position the cable aside.

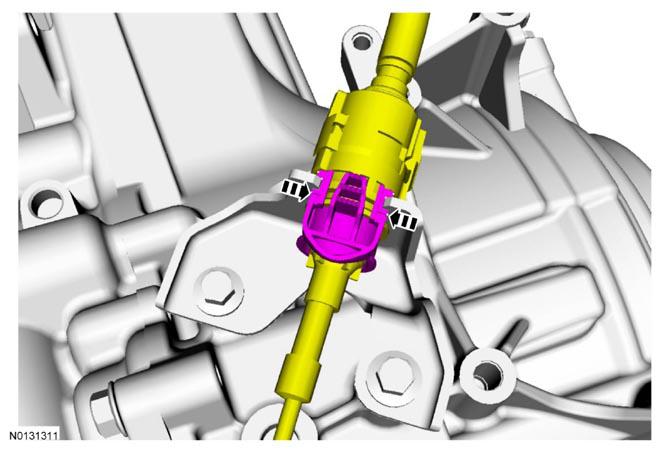

    Fig 7: Removing Selector Lever Cable From Selector Lever Cable Bracket

    Courtesy of FORD MOTOR CO.

    All vehicles

12. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
13. Remove the 2 nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.

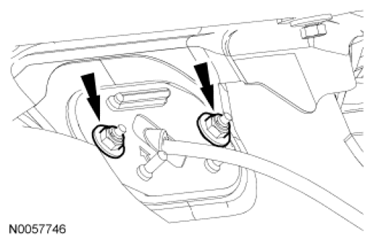

    Fig 8: Locating Selector Lever Cable Nuts

    Courtesy of FORD MOTOR CO.
