Module Communications Network: Notes

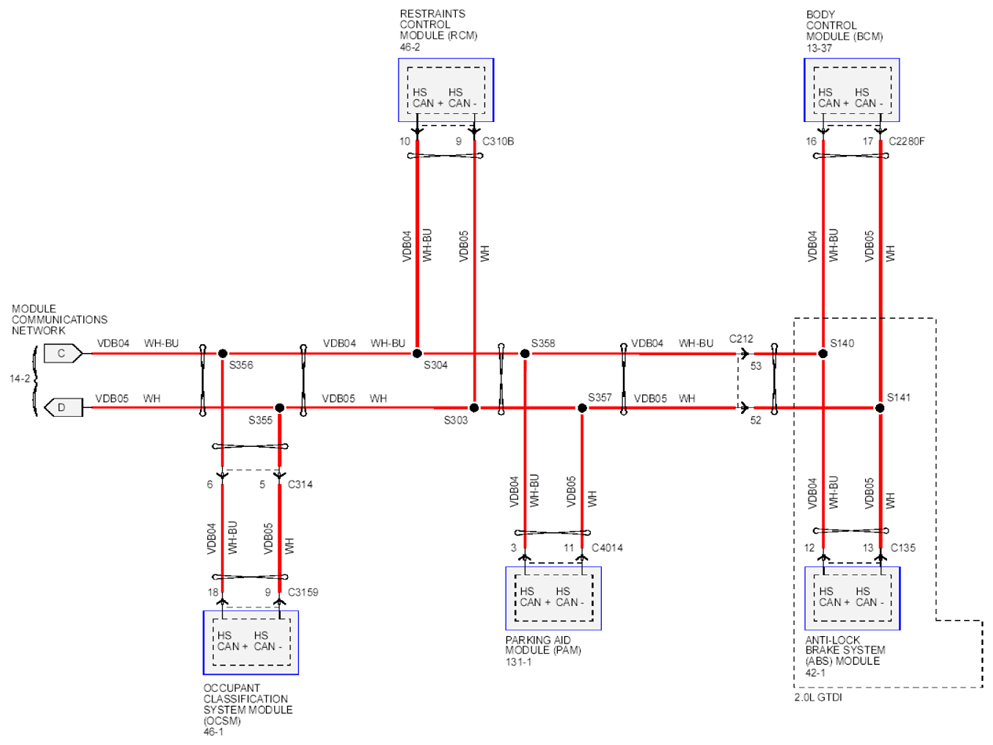

Fig 1: Module Communications Network (View 1 Of 3)

Courtesy of FORD MOTOR CO.

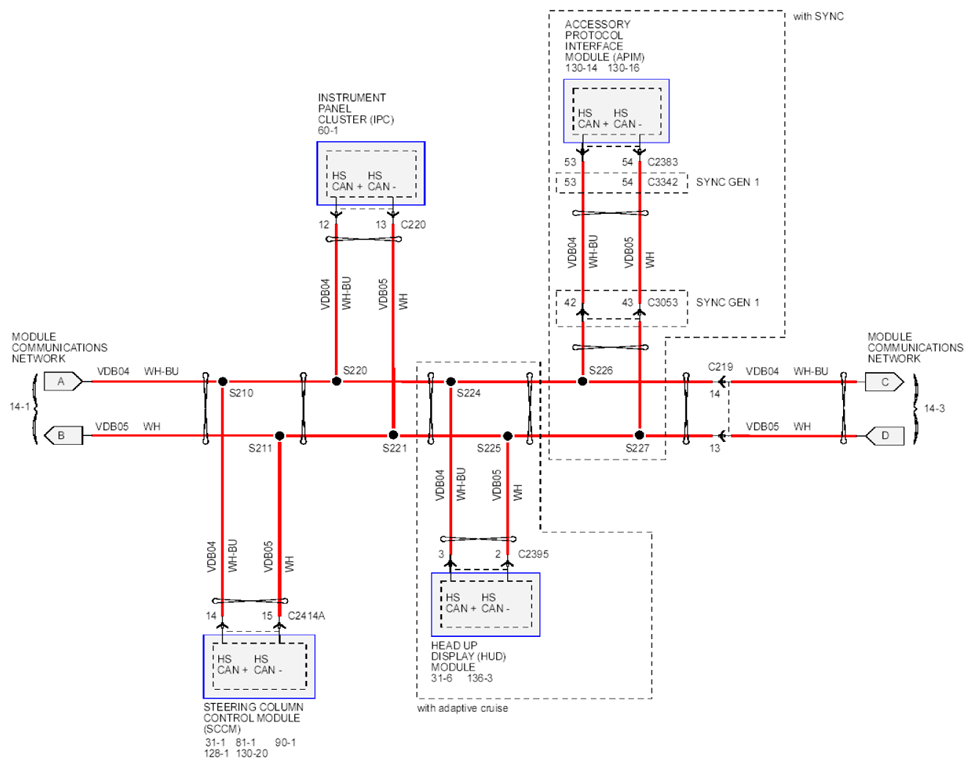

Fig 2: Module Communications Network (View 2 Of 3)

Courtesy of FORD MOTOR CO.

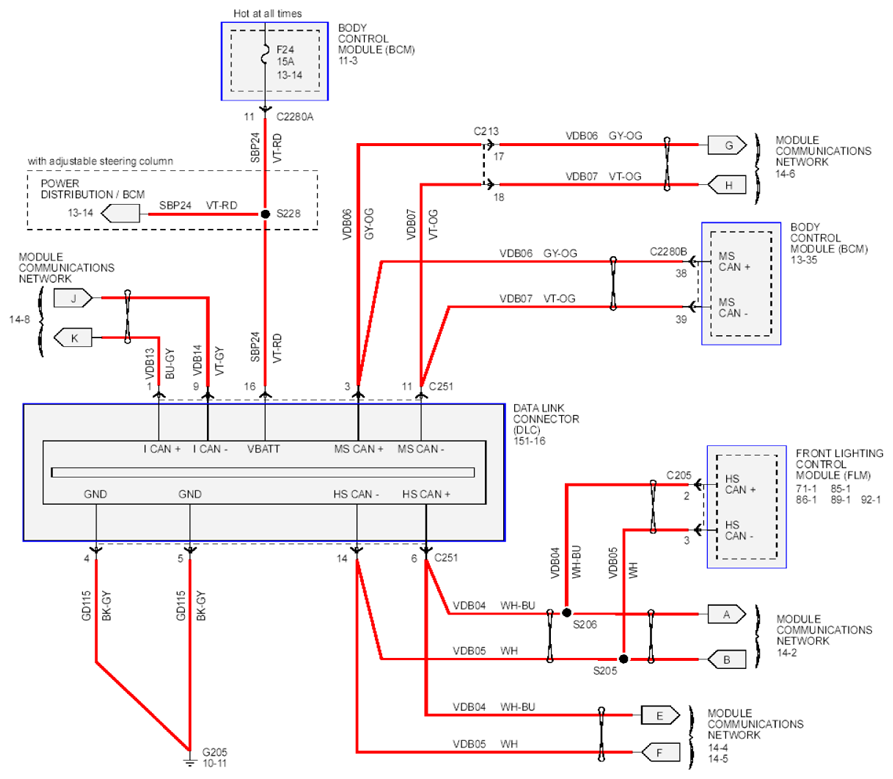

Fig 3: Module Communications Network (View 3 Of 3)

Courtesy of FORD MOTOR CO.
